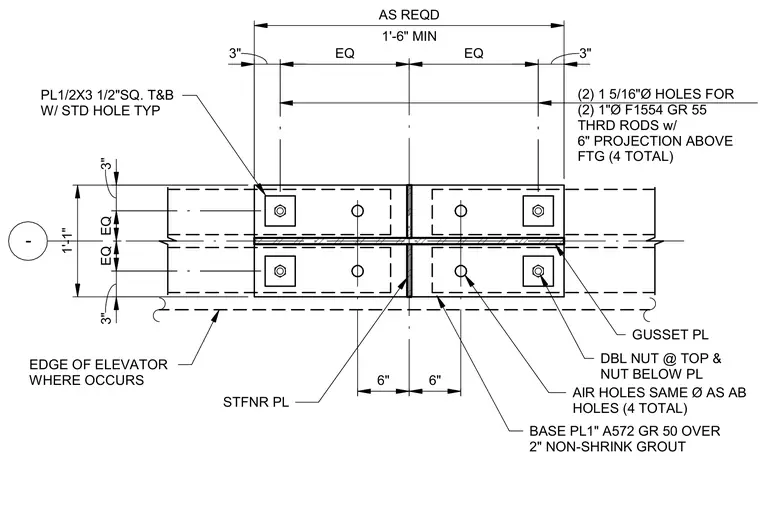

This structural plan detail shows an elevator guide rail base plate connection anchored over two inches of non-shrink grout. The assembly consists of a one-inch thick ASTM A572 Grade 50 base plate with gusset plates and stiffener plates. Four total one-inch diameter ASTM F1554 Grade 55 threaded rods with six-inch projection above the footing are secured through one-and-five-sixteenths-inch diameter holes with double nuts at the top and a single nut below the plate. Additional components include three-and-a-half-inch square top and bottom plates with standard holes, air holes matching the diameter of the anchor bolt holes, and stiffener plates located along the elevator edge where applicable.
1'-1" 6" 6" 3" 3" EQ EQ 1'-6" MIN AS REQD (2) 1 5/16"Ø HOLES FOR (2) 1"Ø F1554 GR 55 THRD RODS w/ 6" PROJECTION ABOVE FTG (4 TOTAL) 3" 3" EQ EQ PL1/2X3 1/2"SQ. T&B W/ STD HOLE TYP EDGE OF ELEVATOR WHERE OCCURS STFNR PL GUSSET PL DBL NUT @ TOP & NUT BELOW PL AIR HOLES SAME Ø AS AB HOLES (4 TOTAL) BASE PL1" A572 GR 50 OVER 2" NON-SHRINK GROUT -
