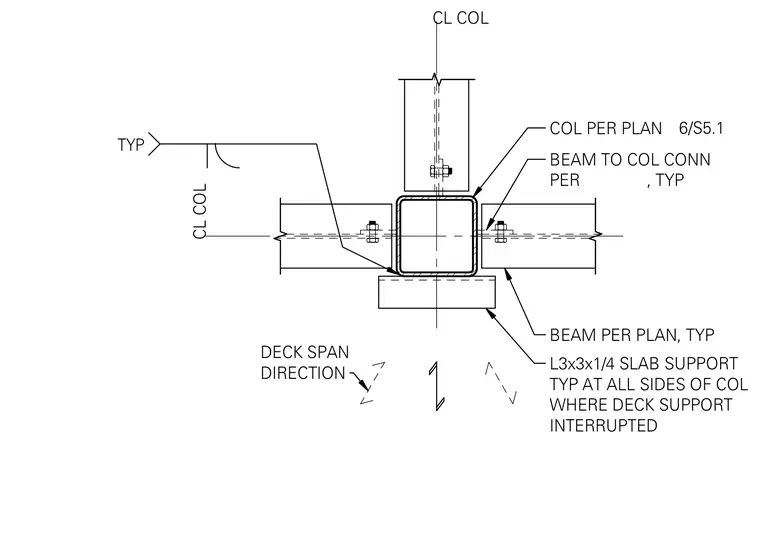

A typical L3x3x1/4 steel angle provides slab support on all sides of the interior column where deck support is interrupted. Framing beams connect to the column per structural plans, with deck span directions indicated around the column centerline.
CL COL CL COL TYP COL PER PLAN BEAM TO COL CONN PER , TYP BEAM PER PLAN, TYP L3x3x1/4 SLAB SUPPORT TYP AT ALL SIDES OF COL WHERE DECK SUPPORT INTERRUPTED DECK SPAN DIRECTION 6/S5.1
