Structural · S-FXV82

Typical Closure Plate (Overhang L ≤ 12")

Materials

Concrete Steel Timber / Wood Metal (misc.)

Elements

Walls Stairs Floors / Slabs Decks Arches Connections / Plates

Connections

Deck Attachment

About this detail

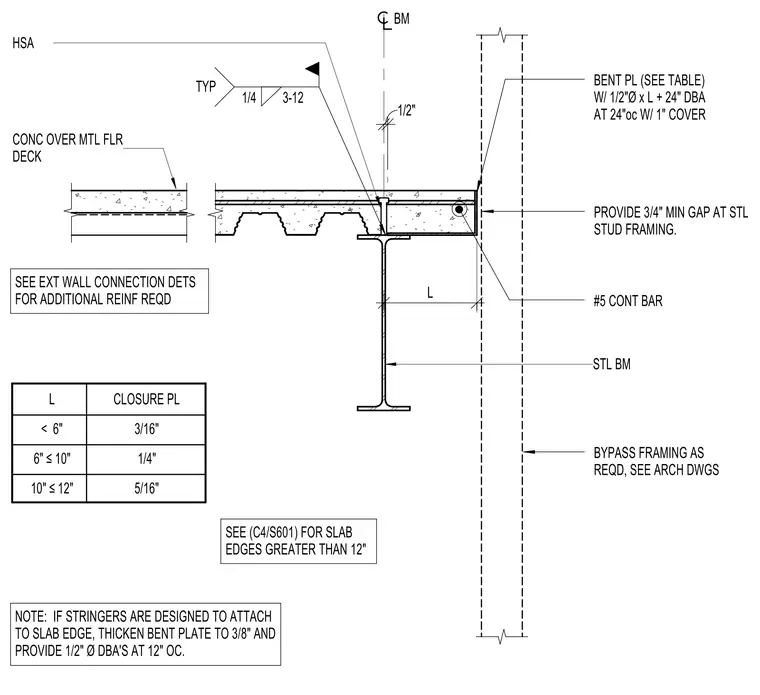

A concrete slab over a metal floor deck bears on a steel beam with a cantilevered overhang length designated as L up to twelve inches. A bent plate sized according to the overhang range serves as the edge closure, secured with a half-inch diameter deformed bar anchor at twenty-four inches on center with one inch of concrete cover. A continuous number five reinforcing bar runs longitudinally near the slab edge, and a headed stud anchor connects the concrete slab to the supporting steel beam flange with a quarter-inch fillet weld at twelve inches on center. A three-quarter-inch minimum gap is maintained at the steel stud framing, and bypass framing is provided as required per architectural drawings. Exterior wall connection details specify additional reinforcement required, and slab edges greater than twelve inches refer to detail C4 on sheet S601. If stringers are designed to attach to the slab edge, the bent plate must be thickened to three-eighths of an inch and half-inch diameter deformed bar anchors must be provided at twelve inches on center.
