A reinforced concrete dock leveler pit features perimeter steel angles anchored into the slab and wall edges. The pit perimeter consists of L4x4x5/16 galvanized steel angles at the sides, secured with 1/2 inch diameter by 4 1/2 inch headed studs at 24 inches on center, and an L4x4x3/8 angle at the back with 1/2 inch diameter by 6 inch headed studs at 12 inches on center. The tilt-up wall panel rests on a footing with two shim packs per panel and a continuous non-shrink grout bed, utilizing #8 drift pins at 1 foot long installed by the tilt wall contractor. Slab reinforcement consists of #4 bars at 12 inches on center, with additional #4 dowels at 16 inches on center with 1 foot 6 inch legs provided at three sides of the pit. A 1/2 inch expansion joint occurs at the pavement interface, and a 3/4 inch double chamfer is specified at the edge of the opening. All steel angles are coordinated with the dock leveler manufacturer, and the pit floor is cast in two pours, labeled Pour A and Pour B, with diamond dowels at the construction joint.

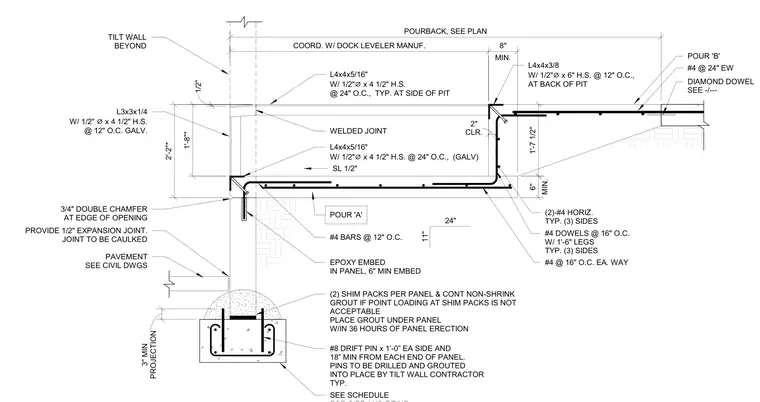

Text on the drawing
SEE -/--- DETAIL BOOK REF. SHEET: S1.33-S WELDED JOINT POUR 'A' 3/4" DOUBLE CHAMFER AT EDGE OF OPENING SEE SCHEDULE FOR SIZE AND REINF. DIAMOND DOWEL (2)-#4 HORIZ. TYP. (3) SIDES #4 DOWELS @ 16" O.C. W/ 1'-6" LEGS TYP. (3) SIDES #4 @ 16" O.C. EA. WAY PAVEMENT SEE CIVIL DWGS #4 BARS @ 12" O.C. 11" 24" EPOXY EMBED IN PANEL, 6" MIN EMBED #8 DRIFT PIN x 1’-0” EA SIDE AND 18” MIN FROM EACH END OF PANEL. PINS TO BE DRILLED AND GROUTED INTO PLACE BY TILT WALL CONTRACTOR TYP. L3x3x1/4 W/ 1/2" ⌀ x 4 1/2" H.S. @ 12" O.C. GALV. L4x4x5/16" W/ 1/2" ⌀ x 4 1/2" H.S. @ 24" O.C., TYP. AT SIDE OF PIT COORD. W/ DOCK LEVELER MANUF. MIN. 8" POURBACK, SEE PLAN L4x4x3/8 W/ 1/2" ⌀ x 6" H.S. @ 12" O.C., AT BACK OF PIT CLR. 2" L4x4x5/16" W/ 1/2" ⌀ x 4 1/2" H.S. @ 24" O.C., (GALV) SL 1/2" 1/2" 1'-8"* 2'-2"* #4 @ 24" EW POUR 'B' (2) SHIM PACKS PER PANEL & CONT NON-SHRINK GROUT IF POINT LOADING AT SHIM PACKS IS NOT ACCEPTABLE PLACE GROUT UNDER PANEL W/IN 36 HOURS OF PANEL ERECTION PROJECTION 3" MIN TILT WALL BEYOND PROVIDE 1/2" EXPANSION JOINT. JOINT TO BE CAULKED 1'-7 1/2" MIN. 6"
