Structural · S-FXGNA

End of Wall or Jamb Bars

Elements

Walls Floors / Slabs Foundations / Footings Roof / Floor Openings

Connections

About this detail

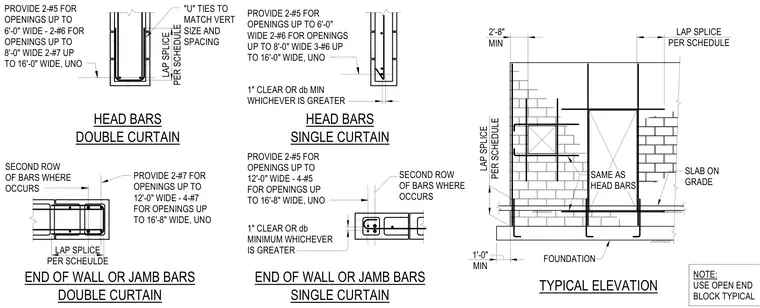

Concrete masonry unit wall reinforcing bar placement, lap splices, and jamb bars at wall ends and openings. Single and double curtain configurations are provided for head bars and jamb bars, including required bar sizes and quantities for various opening widths. Vertical and horizontal rebar placement adheres to minimum clearance requirements of one inch or bar diameter, with specific U-ties matching vertical size and spacing. A typical elevation details overall rebar layout relative to the foundation and slab on grade, specifying minimum lap splices.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
