Structural · S-FXD7D

Vertical Reinforcement At Center Line

Materials

Masonry / CMU

Elements

Beams Walls Bracing Reinforcing

Connections

Rebar Splice / Development

About this detail

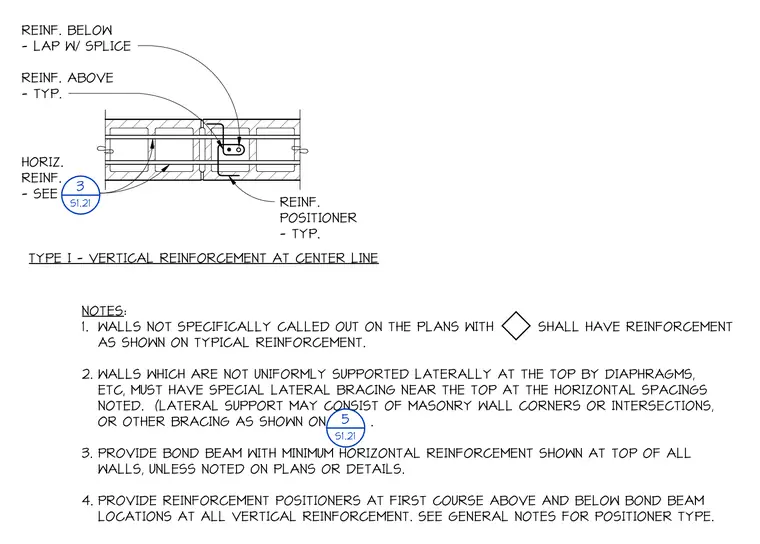

Concrete masonry unit wall details show vertical reinforcement placed at the centerline with typical reinforcement positioners. Reinforcement below laps with the splice while horizontal reinforcement continues through the cells. General notes specify wall reinforcement requirements, lateral bracing criteria, bond beam placement at the top of walls, and positioner locations at bond beams.
