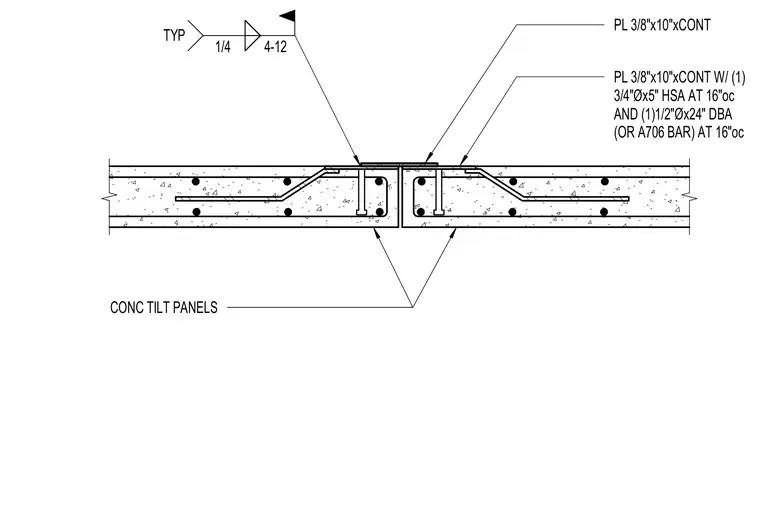

Adjacent concrete tilt-up panels connect using a continuous 3/8-inch by 10-inch steel plate welded across the joint. Each panel embeds one 3/4-inch diameter by 5-inch heavy-duty stud anchor and one 1/2-inch diameter by 24-inch deformed bar anchor, or an A706 bar, spaced at 16 inches on center. A typical 1/4-inch fillet weld secures the plate to the embedded connection hardware.
CONC TILT PANELS 1/4 4-12 TYP PL 3/8"x10"xCONT PL 3/8"x10"xCONT W/ (1) 3/4"Øx5" HSA AT 16"oc AND (1)1/2"Øx24" DBA (OR A706 BAR) AT 16"oc
