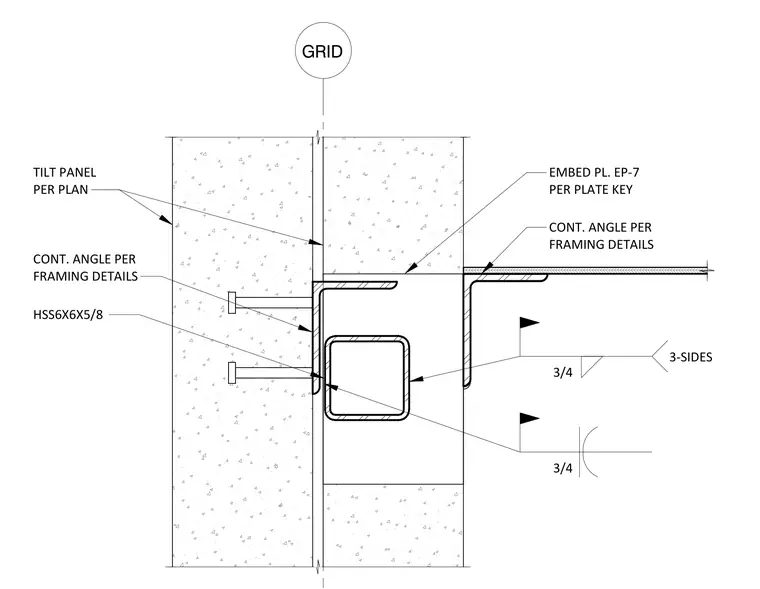

This assembly connects a 6-inch by 6-inch by 5/8-inch hollow structural section steel member to a tilt-up concrete panel. The connection utilizes an embed plate, identified as EP-7 per the plate key, cast into the concrete panel. A continuous angle, sized per framing details, is welded to the hollow structural section with a 3/4-inch fillet weld applied to three sides. The hollow structural section is further secured to the embed plate assembly with a 3/4-inch fillet weld.
Text on the drawing
1 CONT. ANGLE PER FRAMING DETAILS EMBED PL. EP-7 PER PLATE KEY TILT PANEL PER PLAN CONT. ANGLE PER FRAMING DETAILS HSS6X6X5/8 3/4 3-SIDES 3/4 GRID
