Structural · S-FX3RM

Cold-Formed Metal Stud Deflection Track Details

Materials

Concrete Steel Cold-formed Steel Timber / Wood Metal (misc.)

Elements

Walls

Connections

Deck Attachment

About this detail

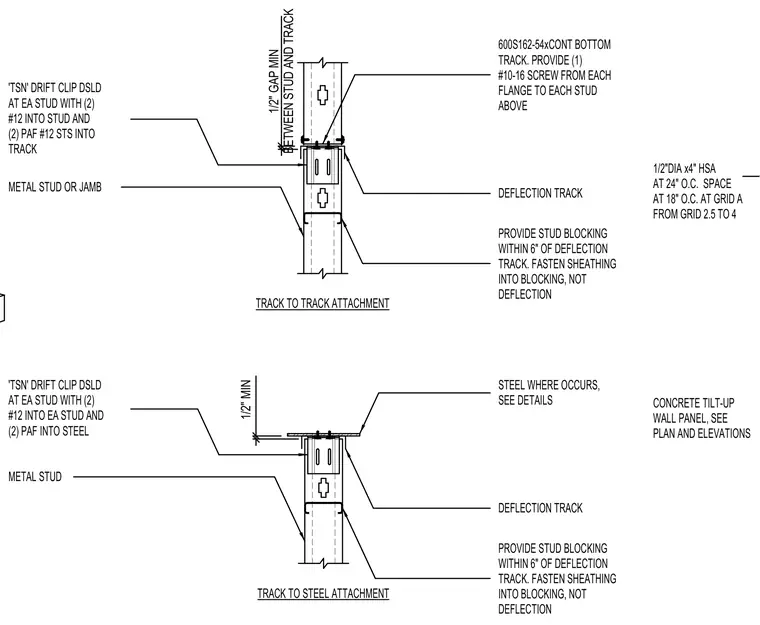

Cold-formed metal framing details illustrate track-to-track and track-to-steel deflection connections utilizing drift clips, continuous bottom tracks, and powder-actuated fasteners. The assembly incorporates a continuous 600S162-54 bottom track secured with one number 10-16 screw from each flange to each stud above, maintaining a one-half inch minimum gap between the stud and track. Stud blocking is required within six inches of the deflection track to allow sheathing to be fastened directly into the blocking rather than the deflection track. Drift clips type TSN are attached at each stud using two number 12 screws into the stud and two powder-actuated fasteners into the structural steel. Concrete tilt-up wall panel attachments utilize one-half inch diameter by four-inch heavy-duty sleeve anchors spaced at twenty-four inches on center, reducing to eighteen inches on center at grid A between grids 2.5 and 4.
