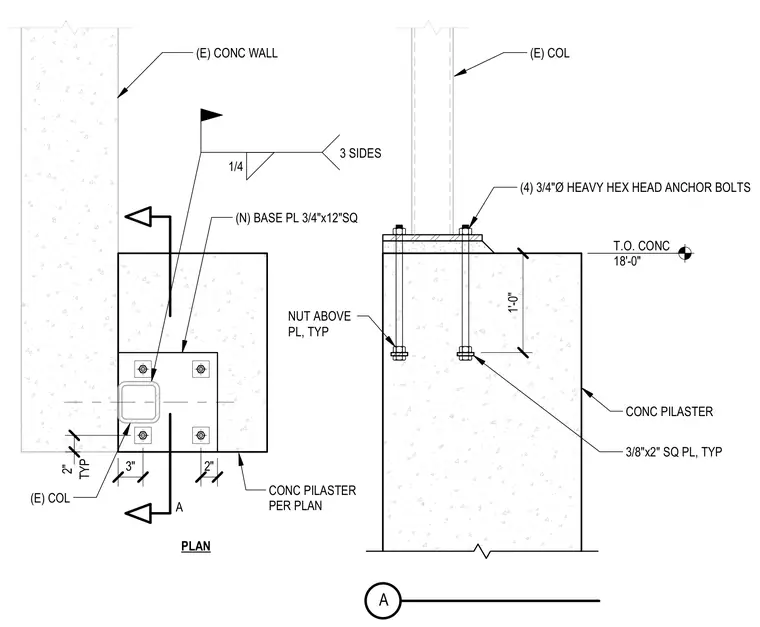

An existing hollow structural section column bears on a new three-quarter-inch by twelve-inch square base plate welded with a quarter-inch fillet weld on three sides. The base plate is secured to a concrete pilaster using four three-quarter-inch-diameter heavy hex head anchor bolts with a nut above the plate. Each anchor bolt features a three-eighths-inch by two-inch square plate embedded in the concrete pilaster, which ties into an existing concrete wall.
(E) COL T.O. CONC 18'-0" CONC PILASTER PER PLAN 1/4 3 SIDES (E) COL (N) BASE PL 3/4"x12"SQ A A PLAN 1'-0" (4) 3/4"Ø HEAVY HEX HEAD ANCHOR BOLTS 3/8"x2" SQ PL, TYP NUT ABOVE PL, TYP TYP 2" 3" CONC PILASTER 2" (E) CONC WALL
