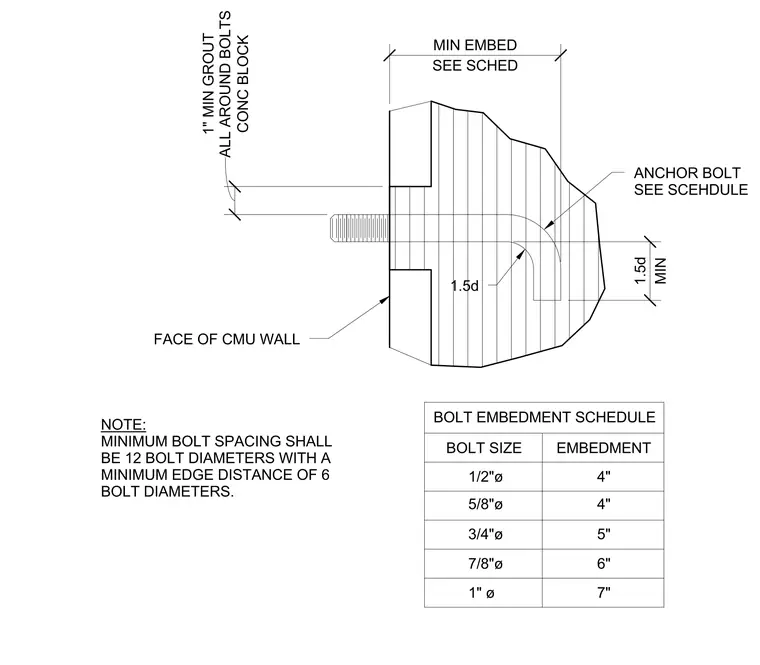

An anchor bolt is embedded into a concrete block wall with a minimum grout thickness of one inch all around the bolt. The hook end maintains a minimum embedment depth specified in the schedule corresponding to bolt diameters ranging from one-half inch to one inch, with minimum edge distances of six bolt diameters and minimum spacings of twelve bolt diameters. A bolt embedment schedule provides specific embedment lengths for each bolt size.
NOTE: MINIMUM BOLT SPACING SHALL BE 12 BOLT DIAMETERS WITH A MINIMUM EDGE DISTANCE OF 6 BOLT DIAMETERS. FACE OF CMU WALL ANCHOR BOLT SEE SCEHDULE BOLT EMBEDMENT SCHEDULE BOLT SIZE EMBEDMENT 1/2"ø 5/8"ø 3/4"ø 7/8"ø 1" ø 4" 4" 5" 6" 7" 1.5d CONC BLOCK 1" MIN GROUT ALL AROUND BOLTS SEE SCHED MIN EMBED MIN 1.5d
