A reinforced concrete curb is cast directly onto a concrete slab on steel deck with a roughened construction joint surface. The curb includes one continuous number 5 longitudinal bar at the top, a number 4 longitudinal bar spaced at 10 inches, and alternating hooked dowels extending into the deck below. Transverse stirrups or ties are spaced at 9 inches on center when the curb depth exceeds 10 inches, and at 12 inches on center when the depth is 10 inches or less. A one-inch concrete clearance is maintained at the base, and the overall curb height has a maximum limit of two feet six inches.

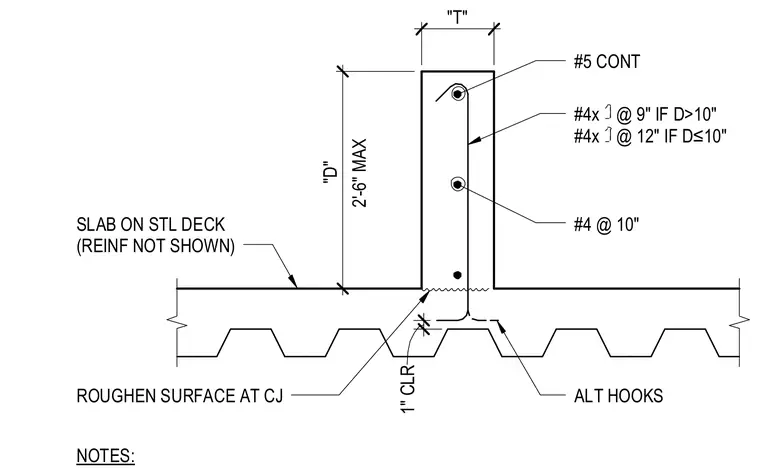

SLAB ON STL DECK (REINF NOT SHOWN) 24" 8" ALT HOOKS #4 @ 10" #5 CONT #4x @ 9" IF D>10" #4x @ 12" IF D≤10" NOTES: 1" CLR ROUGHEN SURFACE AT CJ "T" "D" 2'-6" MAX
