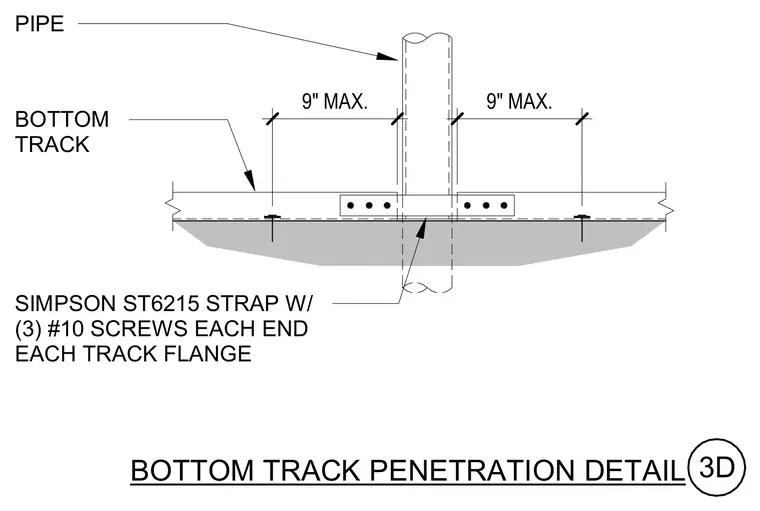

A vertical pipe penetrates a metal framing bottom track with a maximum nine-inch clearance on each side. A Simpson ST6215 strap fastens to the track flanges using three number ten screws at each end.
BOTTOM TRACK PENETRATION DETAIL 3D 9" MAX. 9" MAX. PIPE BOTTOM TRACK SIMPSON ST6215 STRAP W/ (3) #10 SCREWS EACH END EACH TRACK FLANGE
