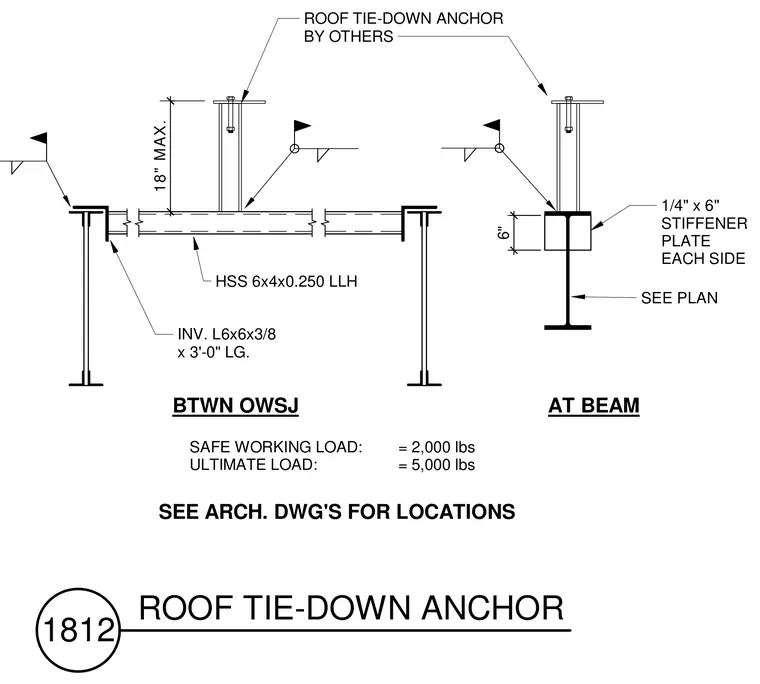

A roof tie-down anchor is mounted to a hollow structural section of size 6x4x0.250 positioned between open web steel joists using an inverted angle member measuring L6x6x3/8 by 3 feet long. Alternatively, the assembly connects at a structural steel beam reinforced with one-quarter inch by six-inch stiffener plates on each side. The anchor has a safe working load of 2,000 pounds and an ultimate load of 5,000 pounds, with locations coordinated per architectural drawings.
SAFE WORKING LOAD: = 2,000 lbs ULTIMATE LOAD: = 5,000 lbs 1/4" x 6" STIFFENER PLATE EACH SIDE HSS 6x4x0.250 LLH INV. L6x6x3/8 x 3'-0" LG. ROOF TIE-DOWN ANCHOR BY OTHERS SEE PLAN SEE ARCH. DWG'S FOR LOCATIONS BTWN OWSJ AT BEAM 18" MAX. 6" 1812 ROOF TIE-DOWN ANCHOR
