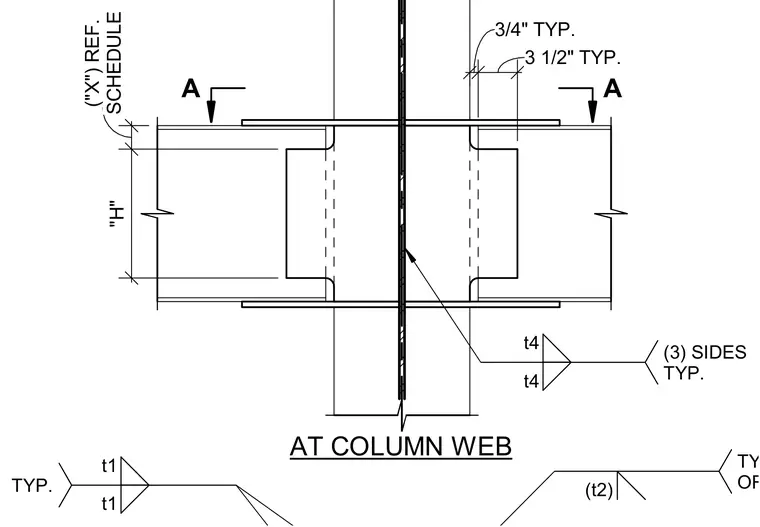

A connection configuration at a steel column web features specified dimensional clearances. Weld size designations t1 and t4 apply to three sides typically, along with variable plate thickness indicators t1, t2, and t4. Dimensional references include a three-and-a-half-inch typical setback and three-quarter-inch typical clearance, with height dimension "H" referenced to the schedule. Section cut A-A indicates orientation for adjacent framing elements.
AT COLUMN WEB 3/4" TYP. 3 1/2" TYP. t4 t4 (3) SIDES TYP. A A "H" SCHEDULE ("X") REF. t1 t1 TYP. (t2) TYP. SHOP OR FIELD
