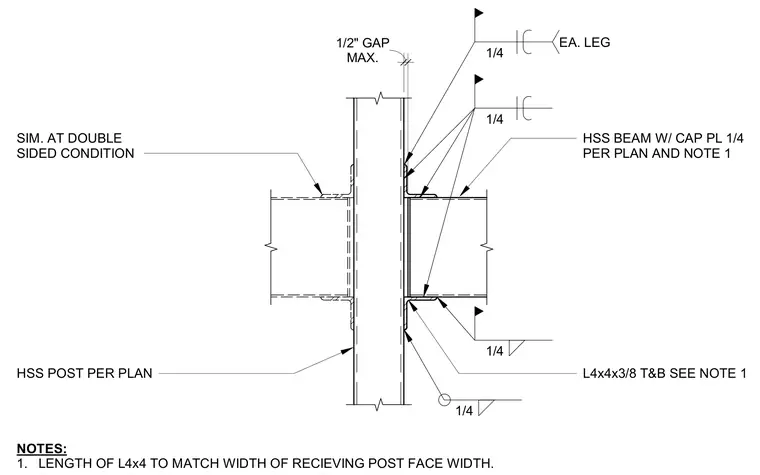

An HSS beam with a one-quarter-inch thick cap plate frames into an HSS post utilizing top and bottom L4x4x3/8 structural angles sized per note one to match the width of the receiving post face width. A maximum one-half-inch gap is maintained between the beam end and the post face. One-quarter-inch fillet welds secure the connection at each leg and are applied similarly at double-sided conditions.
HSS BEAM W/ CAP PL 1/4 PER PLAN AND NOTE 1 HSS POST PER PLAN L4x4x3/8 T&B SEE NOTE 1 1/4 1/4 1/4 EA. LEG 1/4 SIM. AT DOUBLE SIDED CONDITION MAX. 1/2" GAP NOTES: 1. LENGTH OF L4x4 TO MATCH WIDTH OF RECIEVING POST FACE WIDTH.
