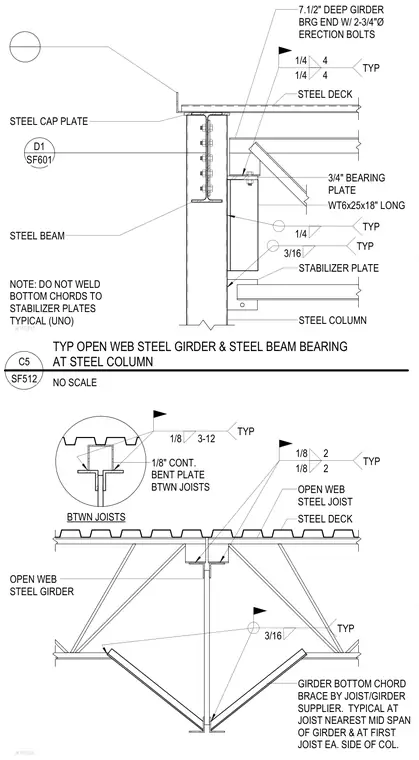

An open web steel girder and steel beam bear at a steel column utilizing a steel cap plate, a three-quarter-inch bearing plate, and a WT6x25 by eighteen-inch long steel column stabilizer plate. The structural assembly includes two three-quarter-inch diameter erection bolts and open web steel joists supporting steel deck. Fillet welds of one-quarter-inch and three-sixteenths-inch sizes are applied typically across the connection plates. A one-eighth-inch continuous bent plate is installed between joists, and bottom chords are left unwelded to the stabilizer plates unless noted otherwise. Girder bottom chord bracing is provided by the joist or girder supplier typically at the joist nearest mid-span of the girder and at the first joist on each side of the column.
JK1RSB15 STEEL BEAM WT6x25x18" LONG STEEL COLUMN STABILIZER PLATE 3/4" BEARING PLATE STEEL DECK 7.1/2" DEEP GIRDER BRG END W/ 2-3/4"Ø ERECTION BOLTS NOTE: DO NOT WELD BOTTOM CHORDS TO STABILIZER PLATES TYPICAL (UNO) 1/4 TYP 1/4 4 1/4 4 TYP 3/16 TYP STEEL CAP PLATE SF601 D1 JK1RTS06 BTWN JOISTS OPEN WEB STEEL GIRDER 1/8" CONT. BENT PLATE BTWN JOISTS GIRDER BOTTOM CHORD BRACE BY JOIST/GIRDER SUPPLIER. TYPICAL AT JOIST NEAREST MID SPAN OF GIRDER & AT FIRST JOIST EA. SIDE OF COL. STEEL DECK OPEN WEB STEEL JOIST 1/8 3-12 TYP 1/8 2 1/8 2 TYP 3/16 TYP NO SCALE SF512 C5 TYP OPEN WEB STEEL GIRDER & STEEL BEAM BEARING AT STEEL COLUMN
