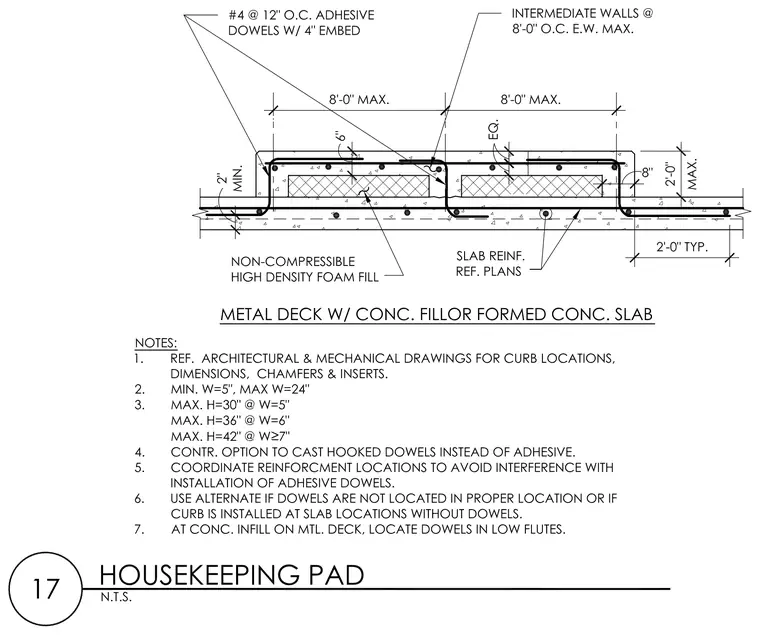

A concrete housekeeping pad constructed over a metal deck with concrete fill and formed concrete slab. The pad incorporates number four adhesive dowels spaced at twelve inches on center with a four-inch embedment, anchored into the slab below. Non-compressible high-density foam fill is positioned inside the pad assembly alongside slab reinforcement per architectural and mechanical plans. Intermediate walls are spaced at eight feet zero inches on center each way maximum, with pad dimensions reaching up to eight feet zero inches wide and two feet zero inches maximum height. Additional notes specify minimum and maximum curb widths from five to twenty-four inches, contractor options to cast hooked dowels instead of adhesive, and requirements to locate dowels in low flutes when placing concrete infill on metal deck.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and open any detail in the built-in CAD editor to edit and export DXF or DWG.
