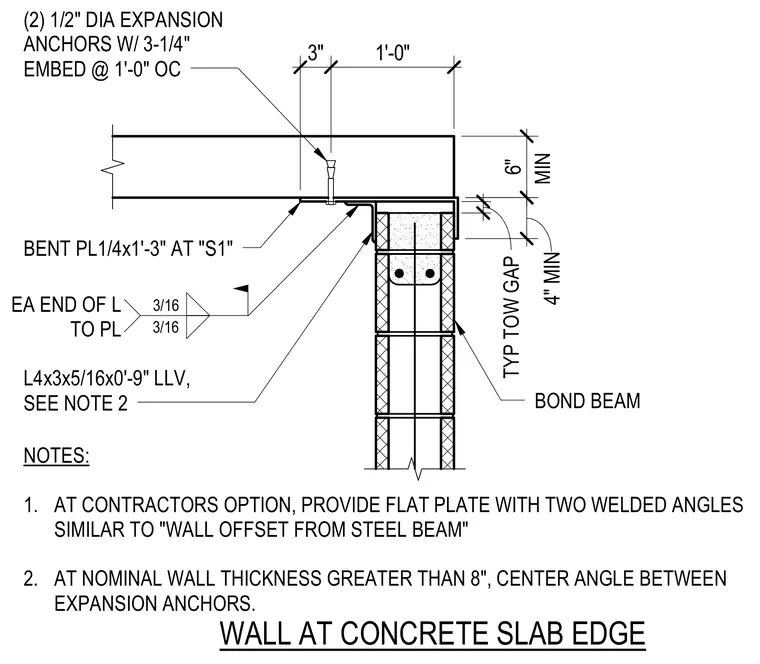

A bent plate measuring one-quarter inch by one foot three inches is anchored to the underside of the concrete slab using two one-half-inch diameter expansion anchors with three-and-one-quarter-inch embedment at one foot on center. A structural angle designated as L4x3x5/16 by zero feet nine inches long leg vertical connects to the bent plate via three-sixteenth-inch fillet welds at each end. The masonry wall features a bond beam at the top with a typical top-of-wall gap and maintains minimum vertical clearances of four inches and six inches. Contractor options permit substituting a flat plate with two welded angles.
L4x3x5/16x0'-9" LLV, SEE NOTE 2 BENT PL1/4x1'-3" AT "S1" (2) 1/2" DIA EXPANSION ANCHORS W/ 3-1/4" EMBED @ 1'-0" OC WALL AT CONCRETE SLAB EDGE 3" 1'-0" 4" MIN 6" BOND BEAM 1 1/8" TYP TOW GAP MIN EA END OF L TO PL 3/16 3/16 NOTES: 1. AT CONTRACTORS OPTION, PROVIDE FLAT PLATE WITH TWO WELDED ANGLES SIMILAR TO "WALL OFFSET FROM STEEL BEAM" 2. AT NOMINAL WALL THICKNESS GREATER THAN 8", CENTER ANGLE BETWEEN EXPANSION ANCHORS.
