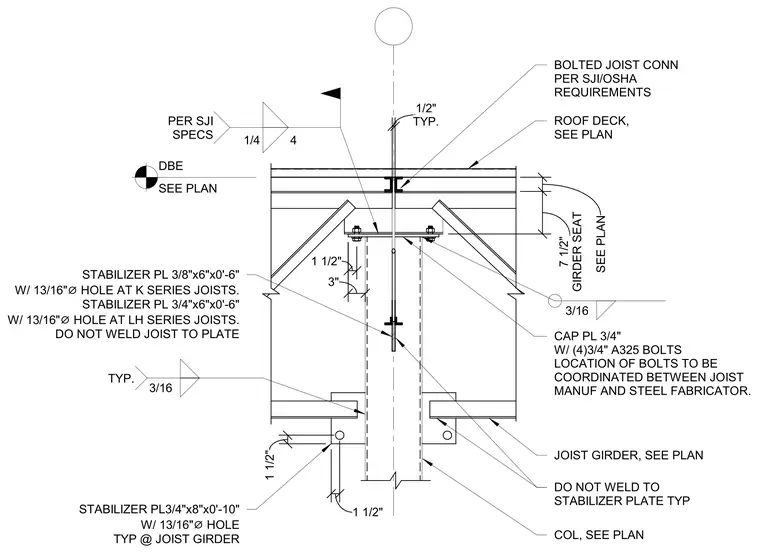

This assembly features a joist girder supported by a column topped with a 3/4-inch cap plate. The girder is secured to the cap plate using four 3/4-inch diameter A325 bolts, with bolt locations requiring coordination between the joist manufacturer and the steel fabricator. Stabilizer plates are provided for lateral bracing, with 3/8-inch by 6-inch by 6-inch plates used for K-series joists and 3/4-inch by 6-inch by 6-inch plates for LH-series joists, each featuring a 13/16-inch diameter hole. An additional 3/4-inch by 8-inch by 10-inch stabilizer plate is specified for the joist girder. The joists must remain unwelded to the stabilizer plates, and all connections must comply with Steel Joist Institute and OSHA requirements, utilizing 3/16-inch typical fillet welds and 1/4-inch welds as specified.
Text on the drawing
STABILIZER PL 3/8"x6"x0'-6" W/ 13/16" ⌀ HOLE AT K SERIES JOISTS. STABILIZER PL 3/4"x6"x0'-6" W/ 13/16" ⌀ HOLE AT LH SERIES JOISTS. DO NOT WELD JOIST TO PLATE CAP PL 3/4" W/ (4)3/4" A325 BOLTS LOCATION OF BOLTS TO BE COORDINATED BETWEEN JOIST MANUF AND STEEL FABRICATOR. ROOF DECK, SEE PLAN BOLTED JOIST CONN PER SJI/OSHA REQUIREMENTS DBE SEE PLAN 1/4 4 PER SJI SPECS 3/16 TYP. 3/16 TYP. 1/2" GIRDER SEAT 7 1/2" SEE PLAN 1 1/2" 3"
