A cross-laminated timber roof panel bears on a glued-laminated timber beam with a weak axis overhang condition. The panel is fastened to the supporting member using inclined 0.230-inch diameter by 6-inch and 11-inch fully threaded screws. A Simpson Strong-Tie SCBH connector with manufacturer-specified fasteners ties the double beam assembly together per plan. A Douglas fir plug is provided to conceal the connection and match the surrounding glulam appearance.

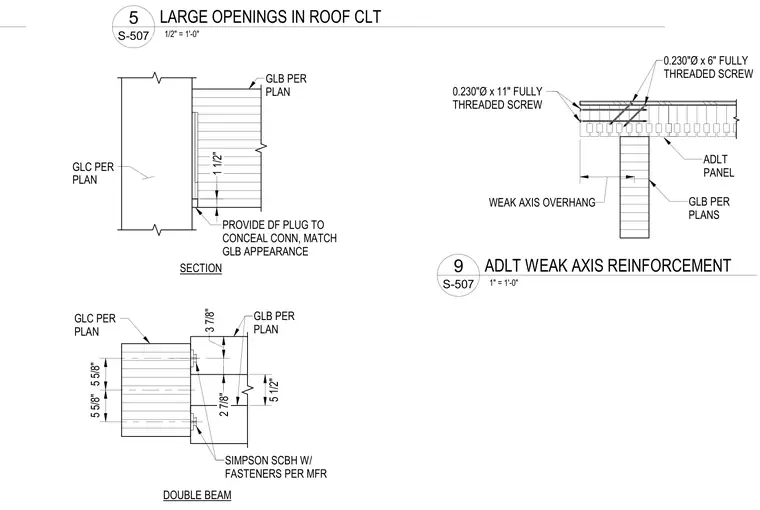

5 1/2" GLC PER PLAN 5 5/8" 5 5/8" 2 7/8" 3 7/8" SIMPSON SCBH W/ FASTENERS PER MFR GLB PER PLAN DOUBLE BEAM 1 1/2" PROVIDE DF PLUG TO CONCEAL CONN, MATCH GLB APPEARANCE GLB PER PLAN GLC PER PLAN SECTION ADLT PANEL WEAK AXIS OVERHANG 0.230"Ø x 6" FULLY THREADED SCREW GLB PER PLANS 0.230"Ø x 11" FULLY THREADED SCREW 1/2" = 1'-0" S-507 5 LARGE OPENINGS IN ROOF CLT 1" = 1'-0" S-507 9 ADLT WEAK AXIS REINFORCEMENT
