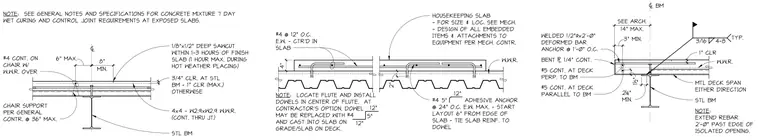

The assembly features a concrete slab supported by a metal deck over a structural steel beam, reinforced with welded wire reinforcement and continuous reinforcing bars. A sawcut control joint is detailed at a maximum six-inch spacing from the beam centerline with continuous welded wire reinforcement running through the joint. Additional details include a bent plate with welded deformed bar anchors spaced at one foot on center, and continuous five-bar reinforcing at the deck perpendicular and parallel to the beam. Chair supports are provided at a maximum thirty-six-inch spacing with three-quarter-inch clearance at the steel beam and one-inch clearance elsewhere. The housekeeping slab and associated adhesive anchors are installed per mechanical contractor specifications with dowels located in the center of the flute.
CHAIR SUPPORT PER GENERAL CONTR. @ 36" MAX. #4 CONT. ON CHAIR W/ W.W.R. OVER 1/8"x1/2" DEEP SAWCUT WITHIN 1-3 HOURS OF FINISH SLAB (1 HOUR MAX. DURING HOT WEATHER PLACING) 4x4 - W2.9xW2.9 W.W.R. (CONT. THRU JT) STL BM NOTE: SEE GENERAL NOTES AND SPECIFICATIONS FOR CONCRETE MIXTURE 7 DAY WET CURING AND CONTROL JOINT REQUIREMENTS AT EXPOSED SLABS. MIN. 8" 6" MAX. 3/4" CLR. AT STL BM - 1" CLR (MAX.) OTHERWISE 6 4" #4 ADHESIVE ANCHOR @ 24" O.C. E.W. MAX. - START LAYOUT 6" FROM EDGE OF SLAB - TIE SLAB REINF. TO DOWEL 12" 5" HOUSEKEEPING SLAB - FOR SIZE & LOC. SEE MECH. - DESIGN OF ALL EMBEDDED ITEMS & ATTACHMENTS TO EQUIPMENT PER MECH. CONTR. #4 @ 12" O.C. E.W. - CTR'D IN SLAB NOTE: LOCATE FLUTE AND INSTALL DOWELS IN CENTER OF FLUTE. AT CONTRACTOR'S OPTION, DOWEL MAY BE REPLACED WITH #4 AND CAST INTO SLAB ON GRADE/SLAB ON DECK. 12" 5" 12" 2" W.W.R. #5 CONT. AT DECK PERP. TO BM MTL DECK SPAN EITHER DIRECTION STL BM NOTE: EXTEND REBAR 2'-0" PAST EDGE OF ISOLATED OPENING. 3" MIN. 14" MAX. SEE ARCH. 6 BM 1½" BENT 7 1/4" CONT. WELDED 1/2""x2'-0" DEFORMED BAR ANCHOR @ 1'-0" O.C. #5 CONT. AT DECK PARALLEL TO BM 3/16 4-8 TYP. 1" CLR 2¼" MIN. W.W.R.
