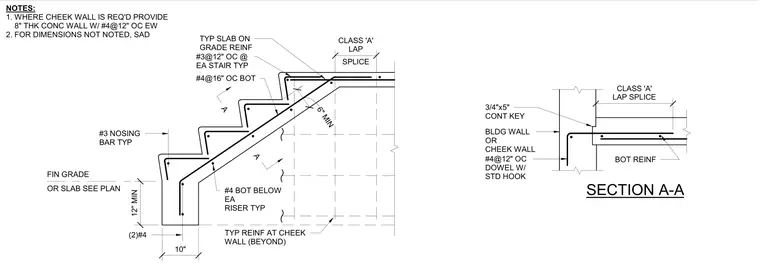

A cast-in-place concrete stair on grade bears against a building wall or cheek wall. The stair assembly features number 3 reinforcing bars at twelve inches on center at each stair and number 4 bottom reinforcing bars at sixteen inches on center. Number 3 nosing bars are placed at each tread with a six-inch minimum class A lap splice. Two number 4 bottom reinforcing bars run continuously with a twelve-inch minimum depth at the base footing. A continuous three-quarter-inch by five-inch keyway and number 4 dowels at twelve inches on center with standard hooks tie the stair slab into the adjacent building wall or cheek wall.
A SECTION A-A A #3@12" OC @ EA STAIR TYP #4@16" OC BOT FIN GRADE (2)#4 BOT REINF TYP SLAB ON GRADE REINF #4 BOT BELOW EA RISER TYP TYP REINF AT CHEEK WALL (BEYOND) 3/4"x5" CONT KEY BLDG WALL OR CHEEK WALL #4@12" OC DOWEL W/ STD HOOK NOTES: 1. WHERE CHEEK WALL IS REQ'D PROVIDE 8" THK CONC WALL W/ #4@12" OC EW 2. FOR DIMENSIONS NOT NOTED, SAD OR SLAB SEE PLAN #3 NOSING BAR TYP SPLICE CLASS 'A' LAP 6" MIN 10" 12" MIN CLASS 'A' LAP SPLICE
