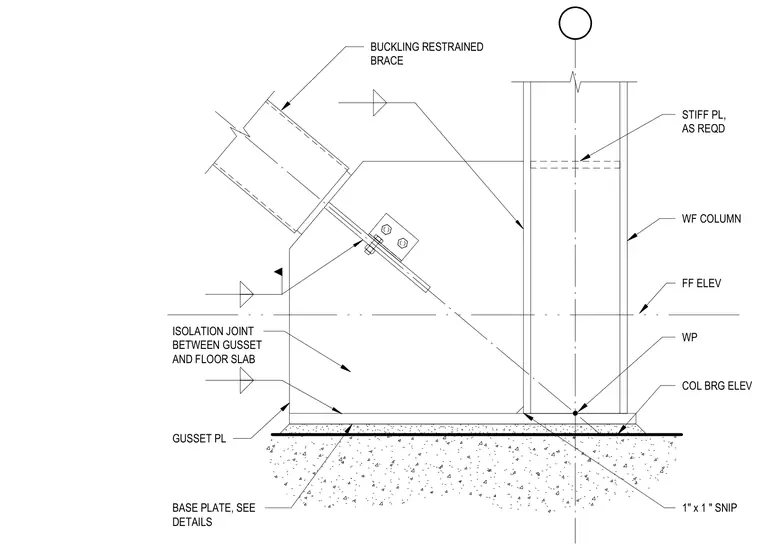

A buckling restrained brace terminates at a wide-flange column base plate assembly using a gusset plate welded to the column and base plate. Stiffener plates are provided inside the wide-flange column as required for load transfer. An isolation joint is detailed between the gusset plate and the surrounding concrete floor slab, incorporating a one-inch by one-inch snip on the plate corner. The base plate rests at the column bearing elevation above the finished floor elevation, with anchor details referenced on separate sheets.
BUCKLING RESTRAINED BRACE WP WF COLUMN BASE PLATE, SEE DETAILS STIFF PL, AS REQD GUSSET PL COL BRG ELEV FF ELEV ISOLATION JOINT BETWEEN GUSSET AND FLOOR SLAB 1" x 1 " SNIP
