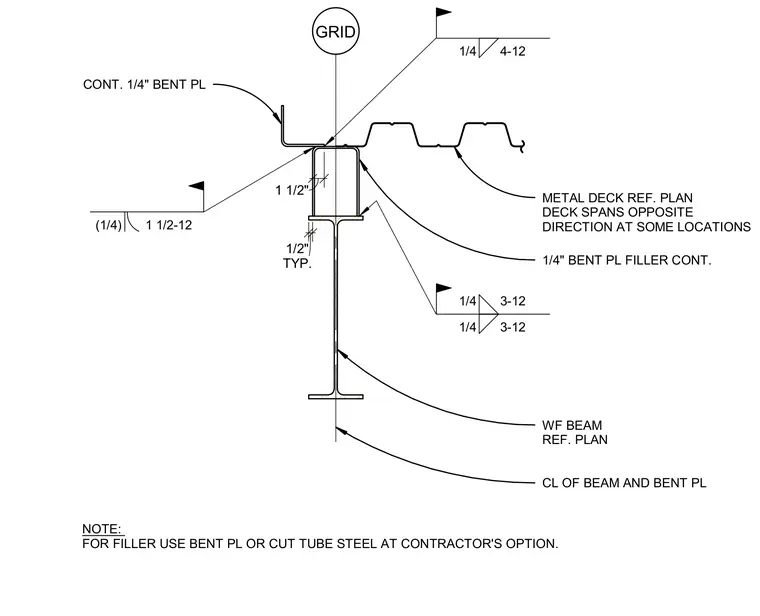

A wide flange beam serves as the primary support, aligned with the centerline and building grid. A continuous one-half-inch typical bent plate acts as a filler piece atop the beam flange, with the contractor having the option to use either a bent plate or cut tube steel. A continuous one-quarter-inch bent plate wraps the edge, welded with quarter-inch fillet welds spaced at twelve inches. The metal deck bears across the top assembly, with deck span orientations varying per plan.
WF BEAM REF. PLAN CL OF BEAM AND BENT PL NOTE: FOR FILLER USE BENT PL OR CUT TUBE STEEL AT CONTRACTOR'S OPTION. TYP. 1/2" 1 1/2" CONT. 1/4" BENT PL 1/4" BENT PL FILLER CONT. METAL DECK REF. PLAN DECK SPANS OPPOSITE DIRECTION AT SOME LOCATIONS GRID 1/4 4-12 1/4 3-12 1/4 3-12 (1/4) 1 1/2-12
