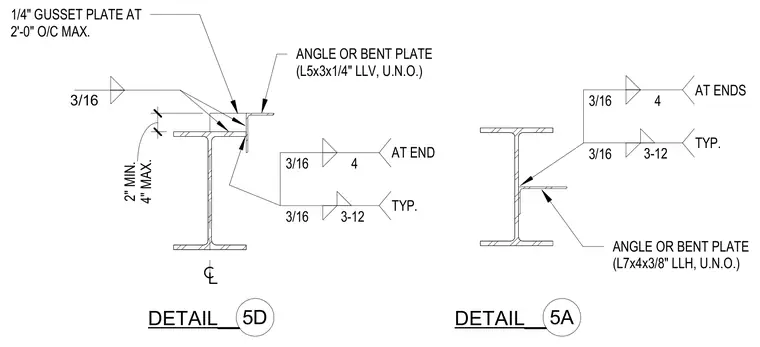

A quarter-inch thick gusset plate connects to the steel beam flange at a maximum spacing of two feet on center. An angle or bent plate, specified as L5x3x1/4" LLV, U.N.O. or L7x4x3/8" LLH, U.N.O., attaches using three-sixteenth-inch fillet welds sized at four inches at ends and twelve inches typically. Dimensions maintain a two-inch minimum and four-inch maximum clearance.
3/16 DETAIL__ 5A 1/4" GUSSET PLATE AT 2'-0" O/C MAX. DETAIL__5D 3-12 TYP. 3/16 4 AT ENDS 3-12 TYP. 4 AT END 3/16 3/16 ANGLE OR BENT PLATE (L7x4x3/8" LLH, U.N.O.) ANGLE OR BENT PLATE (L5x3x1/4" LLV, U.N.O.) 3/16 4" MAX. 2" MIN.
