A concrete slab on metal deck connects to a tilt-up concrete wall at an overhead coiling door opening. The slab rests on a steel beam, which attaches to the tilt-up panel via a continuous three-eighths inch bent plate with horizontal slots at each PSA slotted insert location. Three-quarter inch diameter bolts at each insert are finger-tightened and tack-welded to the nut to allow for movement. A continuous five-sixteenths inch thick by three-inch by three-inch bent plate anchors to the tilt-up panel with one-half inch diameter by six-inch headed anchor studs spaced at one foot on center. PSA slotted inserts are spaced at a maximum of forty-eight inches on center, positioned vertically so the bolt sits one inch from the top of the slot. The tilt-up panel sill is sloped, and the manufacturer provides post-installed connections for the overhead coiling door.
Text on the drawing

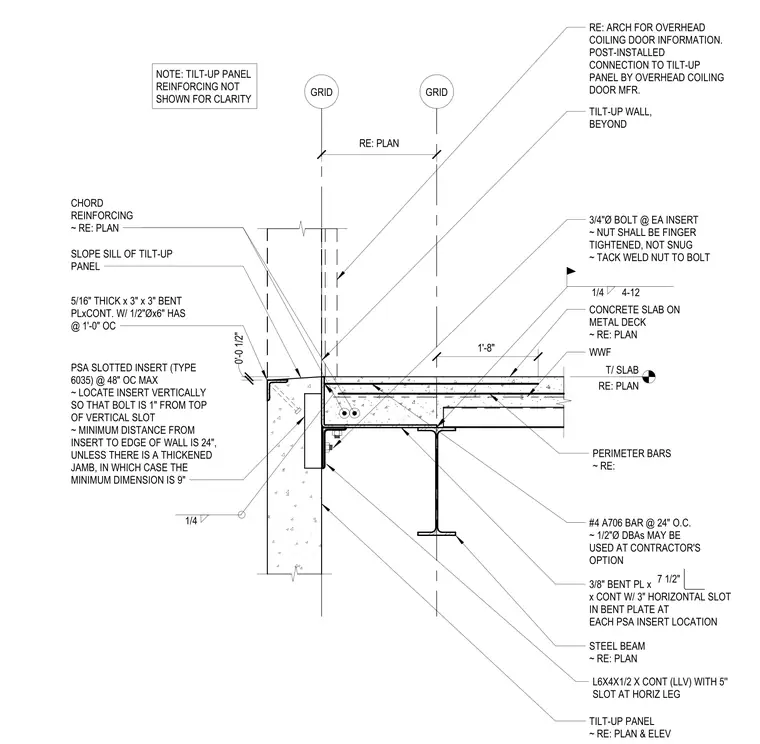

GRID GRID CONCRETE SLAB ON METAL DECK ~ RE: PLAN NOTE: TILT-UP PANEL REINFORCING NOT SHOWN FOR CLARITY 1/4 4-12 T/ SLAB RE: PLAN CHORD REINFORCING ~ RE: PLAN WWF TILT-UP WALL, BEYOND 5/16" THICK x 3" x 3" BENT PLxCONT. W/ 1/2"Øx6" HAS @ 1'-0" OC PSA SLOTTED INSERT (TYPE 6035) @ 48" OC MAX ~ LOCATE INSERT VERTICALLY SO THAT BOLT IS 1" FROM TOP OF VERTICAL SLOT ~ MINIMUM DISTANCE FROM INSERT TO EDGE OF WALL IS 24", UNLESS THERE IS A THICKENED JAMB, IN WHICH CASE THE MINIMUM DIMENSION IS 9" 3/4"Ø BOLT @ EA INSERT ~ NUT SHALL BE FINGER TIGHTENED, NOT SNUG ~ TACK WELD NUT TO BOLT 0'-0 1/2" SLOPE SILL OF TILT-UP PANEL PERIMETER BARS ~ RE: RE: ARCH FOR OVERHEAD COILING DOOR INFORMATION. POST-INSTALLED CONNECTION TO TILT-UP PANEL BY OVERHEAD COILING DOOR MFR. RE: PLAN 1'-8"
