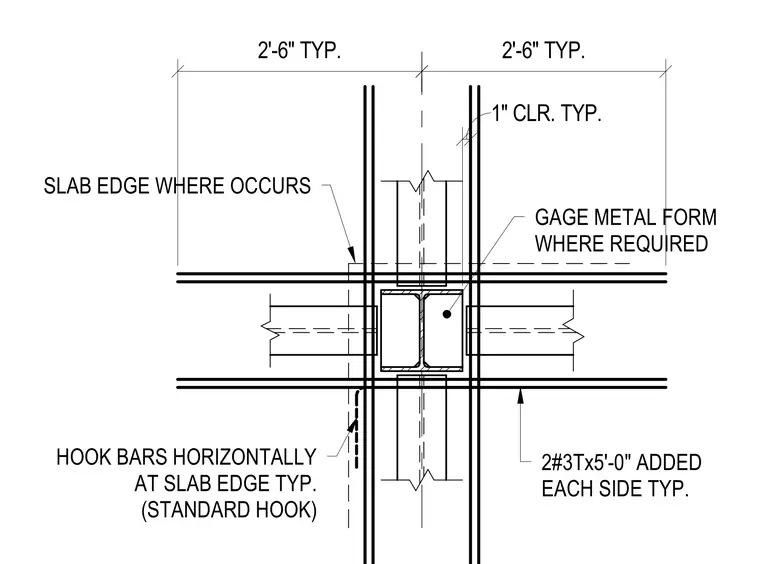

Reinforcing bars feature standard horizontal hooks at the typical slab edge condition where required. Two number three bars measuring five feet zero inches are added to each side. A gauge metal form is placed at the slab edge where applicable, maintaining a typical one-inch clearance.
(STANDARD HOOK) AT SLAB EDGE TYP. HOOK BARS HORIZONTALLY GAGE METAL FORM WHERE REQUIRED SLAB EDGE WHERE OCCURS 2#3Tx5'-0" ADDED EACH SIDE TYP. 2'-6" TYP. 2'-6" TYP. 1" CLR. TYP.
