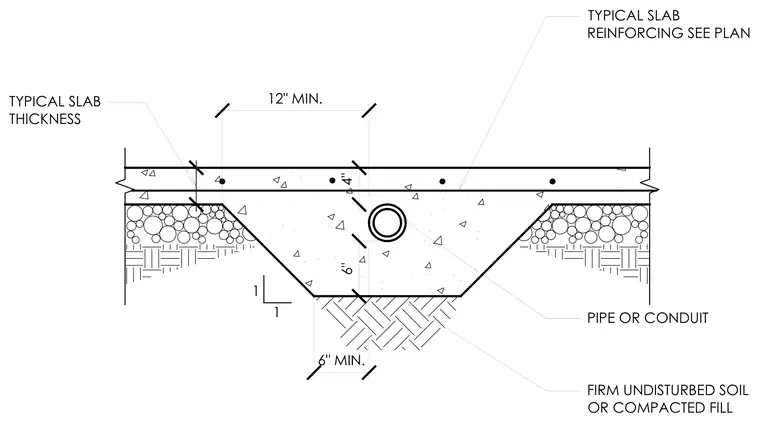

A pipe or conduit penetrates a concrete slab at a thickened section featuring a sloped haunch over firm undisturbed soil or compacted fill. The concrete slab maintains its typical thickness and reinforcing as specified on plan, with additional clearance dimensions around the penetration. A minimum six-inch depth of compacted fill or undisturbed soil supports the thickened slab profile beneath the sleeve.
TYPICAL SLAB REINFORCING SEE PLAN TYPICAL SLAB THICKNESS FIRM UNDISTURBED SOIL OR COMPACTED FILL PIPE OR CONDUIT 1 1 6" MIN. 12" MIN. 6" 4"
