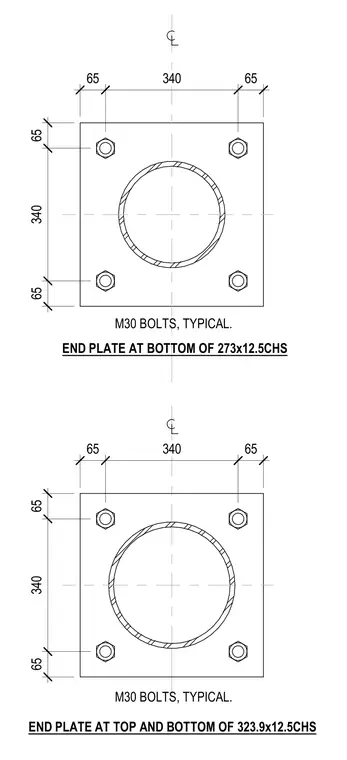

Two circular hollow structural section members terminate with square steel end plates welded to their ends. The 273x12.5 circular hollow section features an end plate at the bottom with four M30 bolts positioned at 340 millimeter spacing. The 323.9x12.5 circular hollow section features end plates at the top and bottom with matching M30 bolt configurations and dimensions. Centerlines intersect the members orthogonally for alignment.
65 340 65 65 340 65 65 340 65 65 340 65 END PLATE AT BOTTOM OF 273x12.5CHS END PLATE AT TOP AND BOTTOM OF 323.9x12.5CHS M30 BOLTS, TYPICAL. M30 BOLTS, TYPICAL.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
