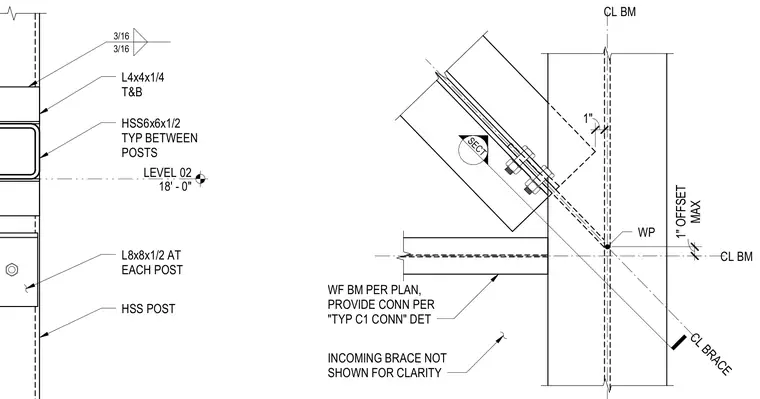

An incoming structural brace connects to a wide-flange beam and a hollow structural section post at a maximum one-inch offset work point. The assembly includes angle profiles measuring four by four by one-quarter inches at the top and bottom, alongside hollow structural section members measuring six by six by one-half inches typical between posts and eight by eight by one-half inches at each post. Three-sixteenths inch fillet welds secure the connection components. The incoming brace is omitted for clarity while the wide-flange beam utilizes a connection detailed per standard structural drawings.
SECT 1" WP WF BM PER PLAN, PROVIDE CONN PER "TYP C1 CONN" DET MAX 1" OFFSET INCOMING BRACE NOT SHOWN FOR CLARITY CL BRACE CL BM CL BM LEVEL 02 18' - 0" 3/16 3/16 L4x4x1/4 T&B HSS6x6x1/2 TYP BETWEEN POSTS HSS POST L8x8x1/2 AT EACH POST
