An open-web steel joist bearing end connects to a steel beam supported by a steel column with a steel cap plate. The joist bearing end features two 1/2-inch diameter erection bolts. A stabilizer plate attaches to the column and joist bottom chord, left unwelded to the girder unless noted otherwise. Fillet welds of 3/16-inch and 1/8-inch sizes secure the structural members and plates. Steel decking spans across the top of the assembly.

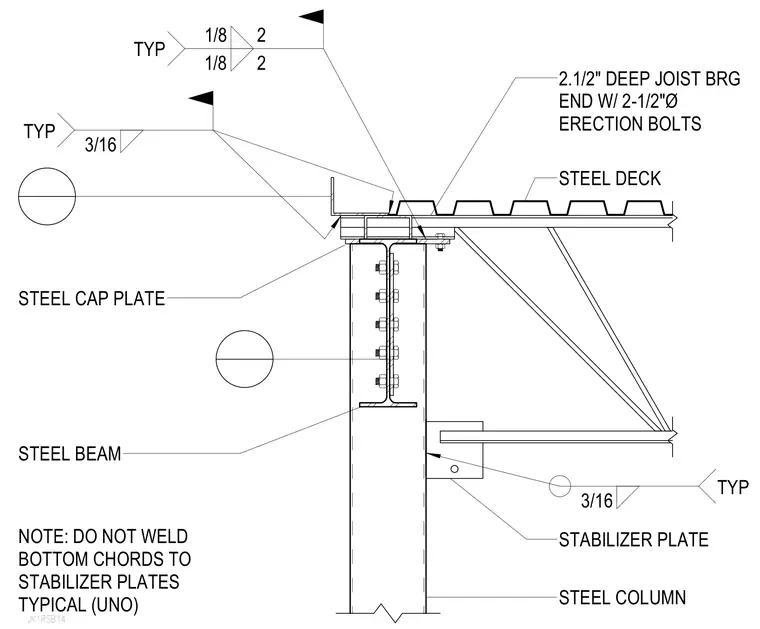

JK1RSB14 STEEL CAP PLATE STEEL COLUMN STABILIZER PLATE STEEL DECK 2.1/2" DEEP JOIST BRG END W/ 2-1/2"Ø ERECTION BOLTS NOTE: DO NOT WELD BOTTOM CHORDS TO STABILIZER PLATES TYPICAL (UNO) 1/8 2 1/8 2 TYP 3/16 TYP 3/16 TYP STEEL BEAM
