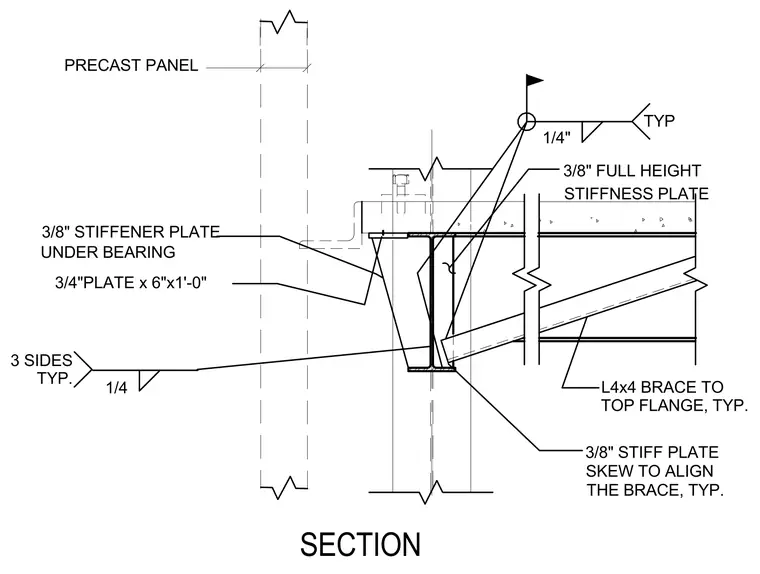

An L4x4 brace connects to a three-eighths-inch stiffener plate that is skewed to align the brace, welded with a one-quarter-inch fillet weld on three sides typically. A three-eighths-inch full height stiffener plate reinforces the web, accompanied by a three-eighths-inch stiffener plate under bearing and a three-quarter-inch plate measuring six inches by one foot zero inches. The assembly interfaces with the precast concrete panel top flange.
PRECAST PANEL SECTION TOP FLANGE, TYP. L4x4 BRACE TO 3/8" STIFFENER PLATE UNDER BEARING 3/8" STIFF PLATE SKEW TO ALIGN THE BRACE, TYP. 3/4"PLATE x 6"x1'-0" 3/8" FULL HEIGHT STIFFNESS PLATE 1/4" TYP 1/4 3 SIDES TYP.
