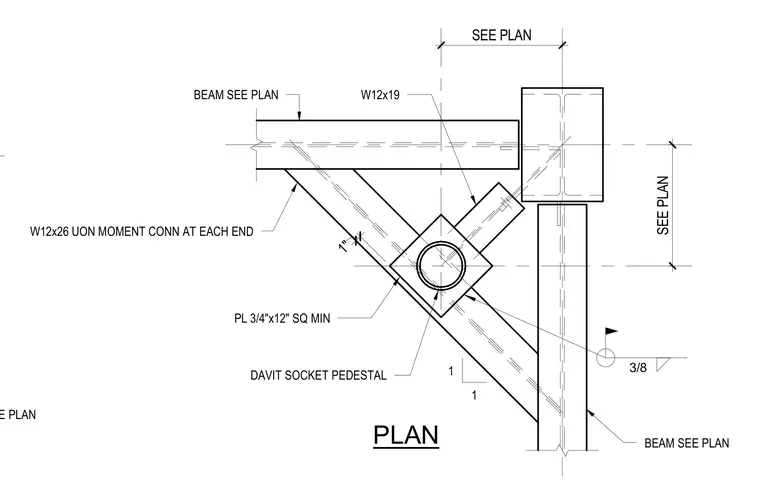

A davit socket pedestal is mounted on a 3/4-inch by 12-inch square minimum plate supported by a W12x19 member framing back to a corner column. A W12x26 diagonal brace connects back to the structural framing with a moment connection at each end unless noted otherwise. Beams are sized per plan and tied into the column grid.
COLUMN SEE PLAN PLAN W12x26 UON MOMENT CONN AT EACH END PL 3/4"x12" SQ MIN DAVIT SOCKET PEDESTAL 1 1 BEAM SEE PLAN W12x19 BEAM SEE PLAN SEE PLAN 1" 3/8 SEE PLAN
