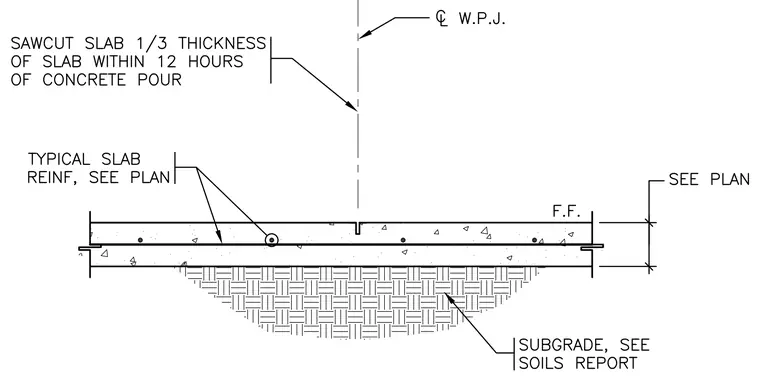

A concrete slab-on-grade rests on a prepared subgrade sized per the soils report. The slab features typical reinforcement sized per plan and includes a sawcut equal to one-third of the slab thickness performed within twelve hours of the concrete pour. A centerline alignment for the working point joint is indicated directly above the sawcut.
