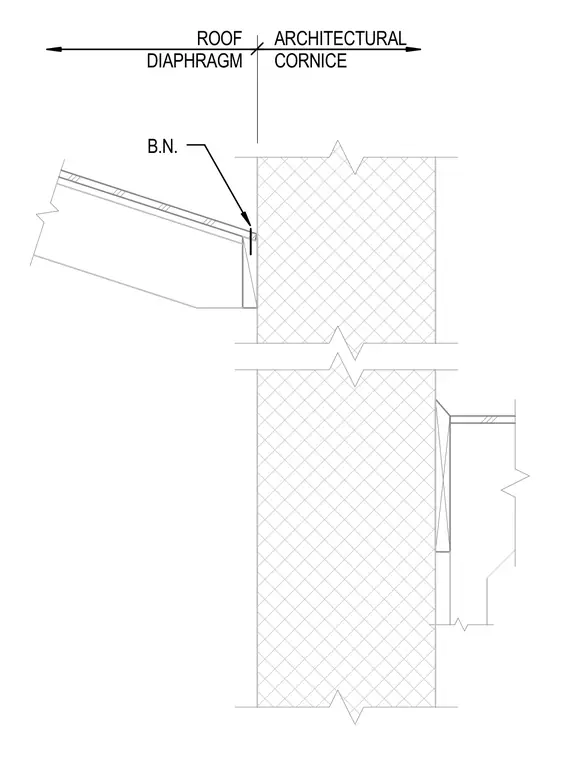

The roof diaphragm meets the architectural cornice at a vertical intersection detail. The roof assembly terminates adjacent to a full-height wall element, indicating the boundary between structural framing and exterior cornice finish. A dimension line spans the junction between the roof diaphragm and the architectural cornice.
ROOF DIAPHRAGM ARCHITECTURAL CORNICE B.N.
