Structural · S-FTAJE

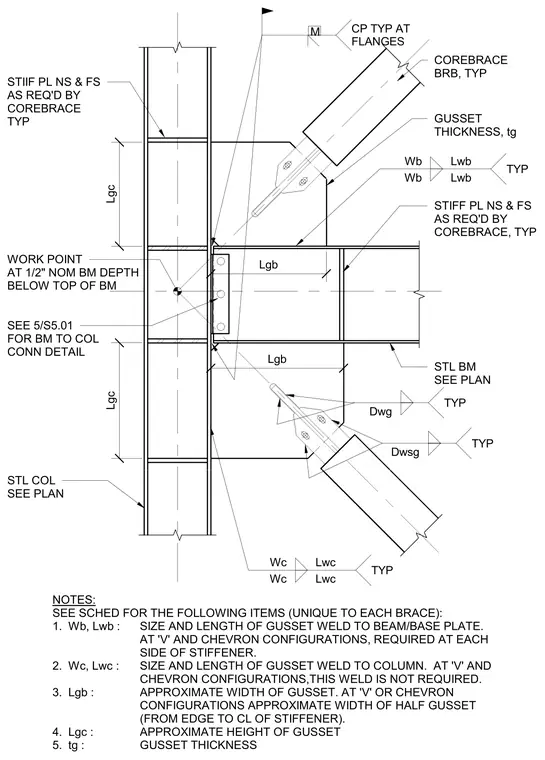

Chevron Buckling-Restrained Brace Gusset Connection at Steel Column and Beam

Materials

Steel

Elements

Columns Beams Bracing Connections / Plates

Connections

Gusset Plate Base Plate / Anchorage Bracing Connection Welded Connection

About this detail

A chevron buckling-restrained brace connection frames into a steel column and steel beam intersection. The assembly incorporates gusset plates welded to the structural members, with stiffener plates positioned on the near side and far side as required by the manufacturer. Work points are located at a nominal depth below the top of the beam, and welds are designated with specific sizes and lengths corresponding to the engineering schedule. Notes outline specific weld requirements for beam and column attachments depending on the brace configuration.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
