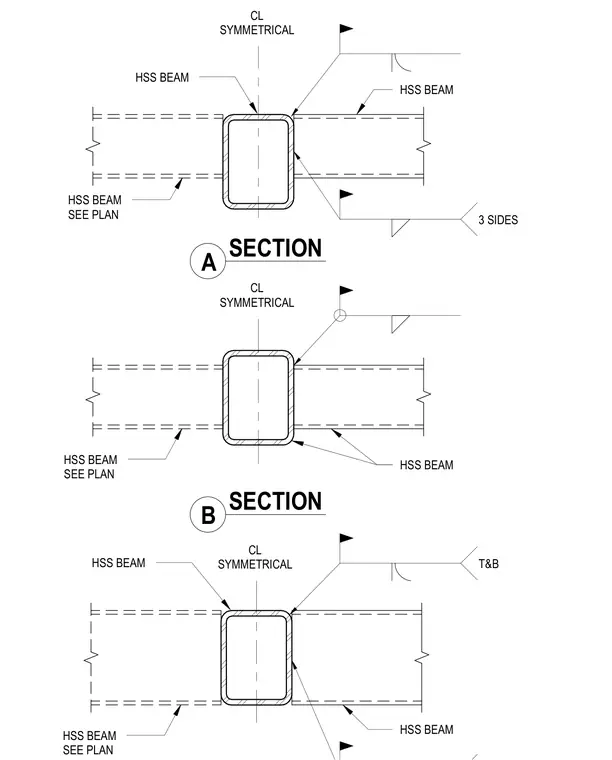

Hollow structural section beams connect to a main hollow structural section beam or column along symmetrical centerlines. Welds are specified on three sides or top and bottom depending on the configuration. Additional framing members are sized per plan. Field weld symbols and weld around symbols are indicated at the intersections.
HSS BEAM SEE PLAN HSS BEAM HSS BEAM HSS BEAM SEE PLAN HSS BEAM SEE PLAN HSS BEAM HSS BEAM HSS BEAM CL SYMMETRICAL B SECTION A SECTION 3 SIDES T&B CL SYMMETRICAL CL SYMMETRICAL
