Floor Deck Opening Framing and Reinforcing Conditions

Materials

Concrete Reinforced Concrete Steel Metal (misc.)

Elements

Beams Floors / Slabs Decks Anchors / Embeds Reinforcing Roof / Floor Openings

Connections

Bolted Connection Deck Attachment Timber / Mass-Timber Connection

About this detail

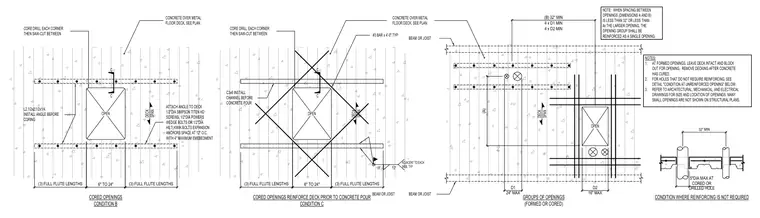

These structural framing details show requirements for cored and formed floor slab openings over metal deck. Condition B uses an L2 1/2 x 2 1/2 x 1/4 angle attached to the deck using one-half-inch diameter Simpson Titen HD screws, Powers wedge bolts, or Hilti Kwik Bolt expansion anchors spaced at twelve inches on center with four-inch maximum embedment, installed before coring. Condition C utilizes a C3x6 channel installed before the concrete pour with one-eighth-inch clearance adjacent to each web and three full flute lengths extending six to twenty-four inches on each side. Groups of formed or cored openings require reinforcing when spacing dimensions A and B are less than thirty-two inches or less than four times the larger opening dimension. Unreinforced conditions allow up to five-inch diameter maximum holes at cored or drilled locations where spacing rules are met.
