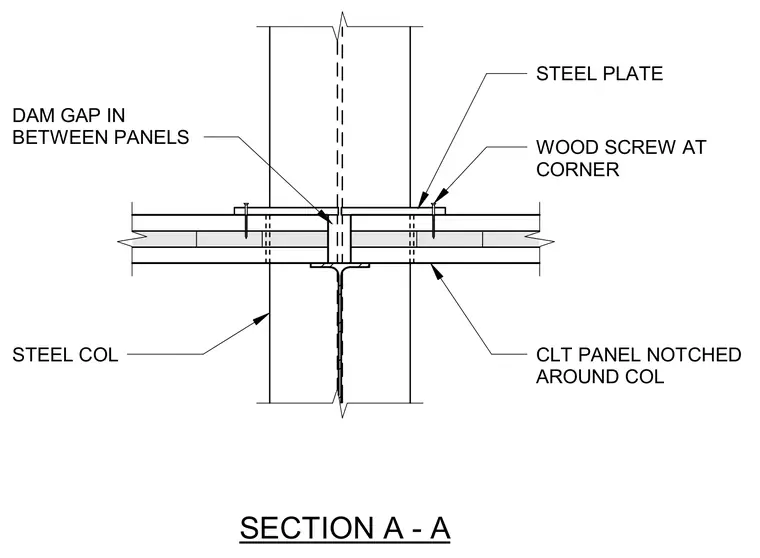

Cross laminated timber panels are notched to fit around a steel column and joined across a gap. A steel plate spans the joint between the panels and is fastened with wood screws at the corners. A dam fills the gap between the panels adjacent to the column flange.
STEEL COL DAM GAP IN BETWEEN PANELS CLT PANEL NOTCHED AROUND COL WOOD SCREW AT CORNER STEEL PLATE SECTION A - A
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
