An HSS beam connects to an HSS column sized per plan using a structural seat angle. A 4x4x3/8-inch by 6-inch angle supports depths between 4 and 6 inches, while a 6x6x3/8-inch by 6-inch angle supports depths greater than 6 inches. The angle is fillet welded to the column face, and the supported HSS beam is welded to the seat angle with quarter-inch fillet welds.

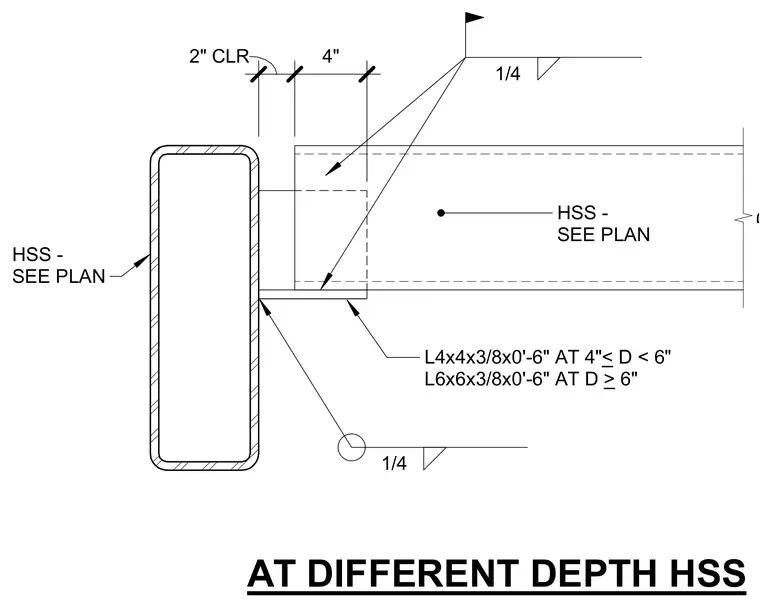

AT DIFFERENT DEPTH HSS L4x4x3/8x0'-6" AT 4"< D < 6" L6x6x3/8x0'-6" AT D > 6" HSS - SEE PLAN HSS - SEE PLAN 1/4 1/4 D 2" CLR 4"
