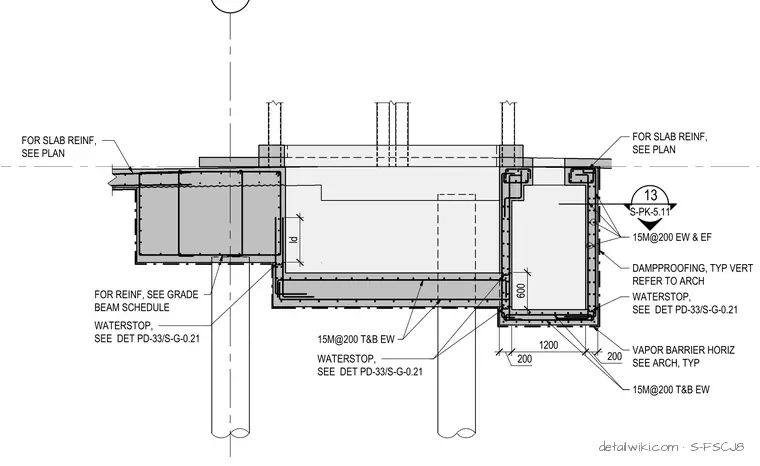

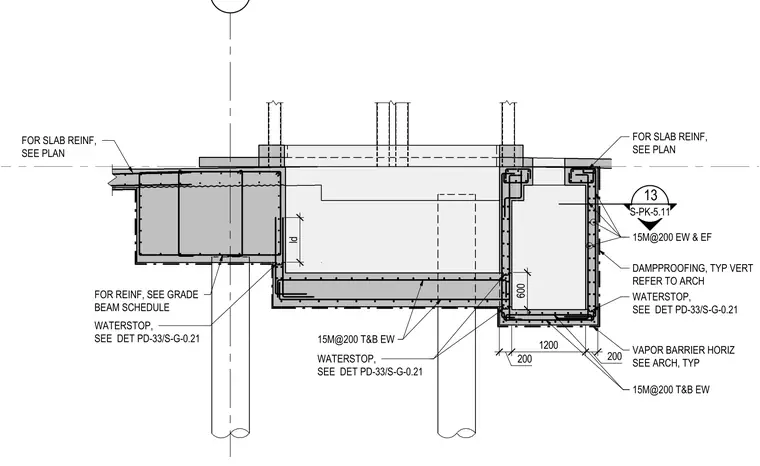

The drawing illustrates a reinforced concrete elevator pit assembly supported by foundation elements and piles. It details the concrete slab, grade beams, vertical and horizontal reinforcing steel placement (such as 15M@200 each way and each face), damp proofing, vapor barriers, and waterstops at construction joints to prevent moisture infiltration.
Text on the drawing
PK-14 600 200 1200 200 VAPOR BARRIER HORIZ SEE ARCH, TYP DAMPPROOFING, TYP VERT REFER TO ARCH ld 15M@200 EW & EF FOR SLAB REINF, SEE PLAN 15M@200 T&B EW 15M@200 T&B EW WATERSTOP, SEE DET PD-33/S-G-0.21 FOR REINF, SEE GRADE BEAM SCHEDULE FOR SLAB REINF, SEE PLAN WATERSTOP, SEE DET PD-33/S-G-0.21 WATERSTOP, SEE DET PD-33/S-G-0.21 13 S-PK-5.11
