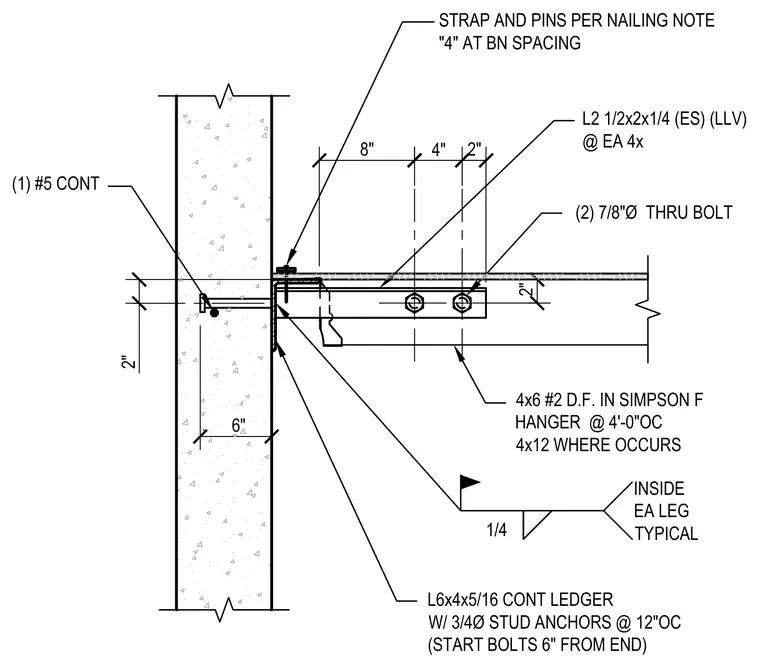

A continuous L6x4x5/16 structural steel ledger angle is anchored to the concrete wall using three-quarter-inch diameter stud anchors spaced at twelve inches on center, starting six inches from the end. One continuous number five reinforcing bar runs horizontally within the wall. A 4x6 number two Douglas Fir framing member is supported in a Simpson joist hanger spaced at four feet on center, with a 4x12 member used where specified. An L2 1/2x2x1/4 angle connects each 4x framing member, secured with two seven-eighths-inch diameter through-bolts through each leg. Straps and pins are installed per the nailing notes.
L2 1/2x2x1/4 (ES) (LLV) @ EA 4x 4x6 #2 D.F. IN SIMPSON F HANGER @ 4'-0"OC 4x12 WHERE OCCURS L6x4x5/16 CONT LEDGER W/ 3/4Ø STUD ANCHORS @ 12"OC (START BOLTS 6" FROM END) (1) #5 CONT 2" 8" 6" (2) 7/8"Ø THRU BOLT 2" 2" 1/4 INSIDE EA LEG TYPICAL 4" STRAP AND PINS PER NAILING NOTE "4" AT BN SPACING
