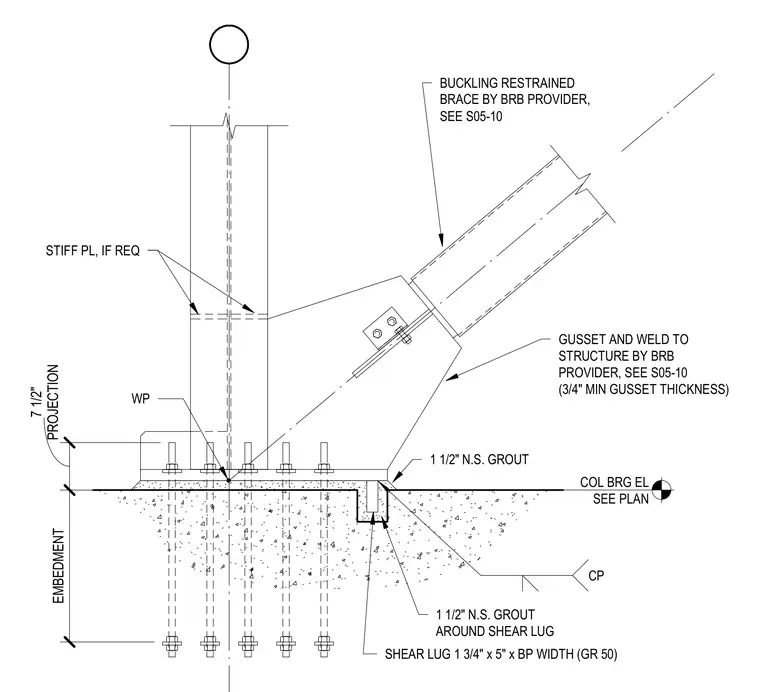

A buckling restrained brace connects to a structural column base plate supported by a concrete foundation with anchor bolts and a shear lug. A gusset plate with a three-quarter-inch minimum thickness welds to the structure, while optional stiffener plates reinforce the column flange. A one-and-a-half-inch non-shrink grout layer packs beneath the base plate, and similar grout surrounds the structural steel shear lug embedded in the concrete pier. The shear lug measures one and three-quarters by five inches by the base plate width in Grade 50 steel. The column bearing elevation is sized per the structural plan.
BUCKLING RESTRAINED BRACE BY BRB PROVIDER, SEE S05-10 WP GUSSET AND WELD TO STRUCTURE BY BRB PROVIDER, SEE S05-10 (3/4" MIN GUSSET THICKNESS) PROJECTION 7 1/2" EMBEDMENT SHEAR LUG 1 3/4" x 5" x BP WIDTH (GR 50) CP 1 1/2" N.S. GROUT COL BRG EL SEE PLAN STIFF PL, IF REQ 1 1/2" N.S. GROUT AROUND SHEAR LUG
