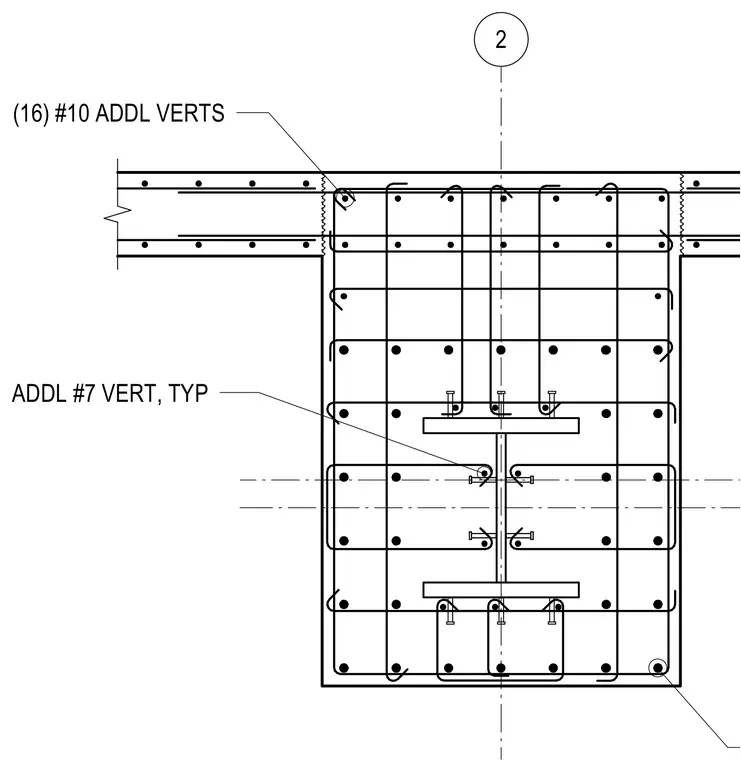

A structural concrete column is reinforced with sixteen number ten additional vertical bars and typical additional number seven vertical bars. The assembly embeds a structural steel shape anchored with headed studs and surrounded by a tight grid of horizontal ties and vertical reinforcement.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
