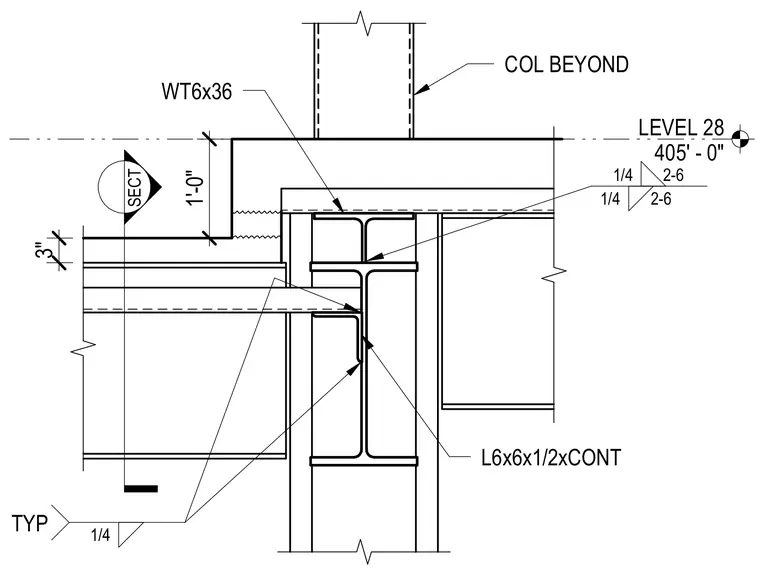

A WT6x36 section bears on a steel column with a continuous L6x6x1/2 angle welded in place. A quarter-inch fillet weld secures the assembly. A column beyond is indicated at Level 28, set to elevation 405 feet zero inches with a one-foot offset.
SECT LEVEL 28 405' - 0" 1'-0" WT6x36 L6x6x1/2xCONT 3" COL BEYOND 1/4 2-6 1/4 2-6 TYP 1/4
