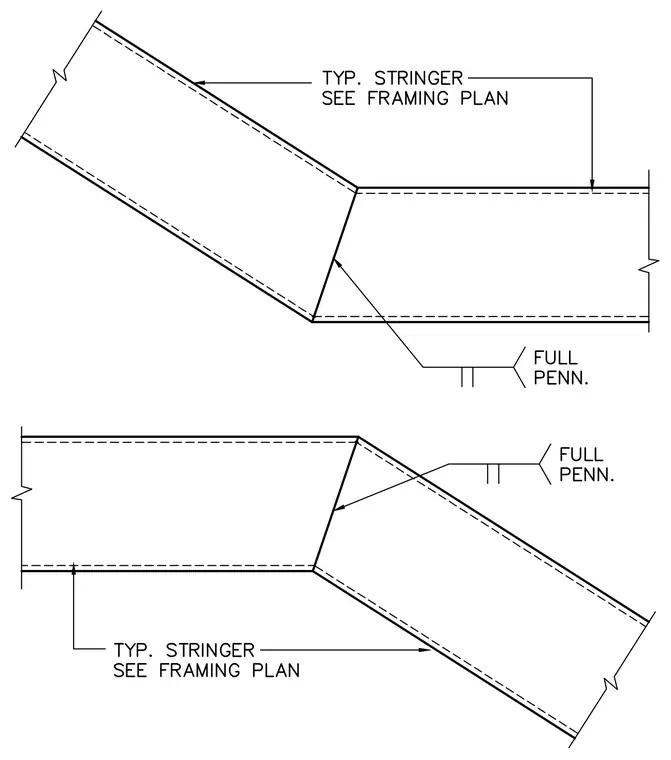

Typical stair stringers transition between inclined and horizontal segments with a direct butt joint specified as full penetration welds. The typical stringer size is sized per the framing plan.
