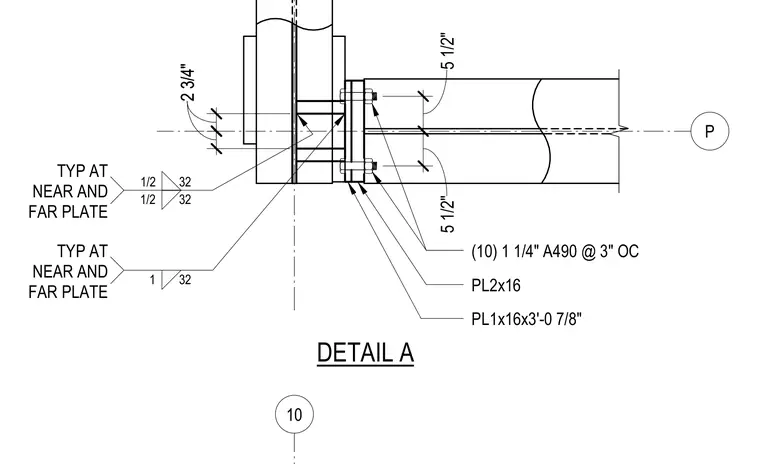

A heavy steel beam frames into a supporting structural member using a bolted flange plate connection stiffened with welded plates. The connection utilizes ten one-and-one-quarter-inch A490 bolts spaced at three inches on center through PL2x16 plates and a PL1x16x3'-0 7/8" plate. One-half-inch and one-inch fillet welds secure the stiffener plates at the near and far sides typical at the connection. Fillet welds are detailed with surface finish markings on the structural steel assembly.
10 P DETAIL A TYP AT NEAR AND FAR PLATE 32 32 1/2 1/2 TYP AT NEAR AND FAR PLATE 32 1 PL1x16x3'-0 7/8" PL2x16 (10) 1 1/4" A490 @ 3" OC 5 1/2" 5 1/2" 2 3/4" 2 3/4"
