A davit socket pedestal is welded directly to the top flange of a structural steel beam sized per plan. Three-eighths-inch thick stiffener plates are welded to each side of the beam web and flanges with quarter-inch fillet welds. Angle braces measuring 6x6x3/8 typical unon tie the socket assembly back to adjacent framing. A half-inch by 4-inch plan plate spans the beam width plus one inch, attached to the flanges with quarter-inch fillet welds left unwelded half an inch from the plate edge.

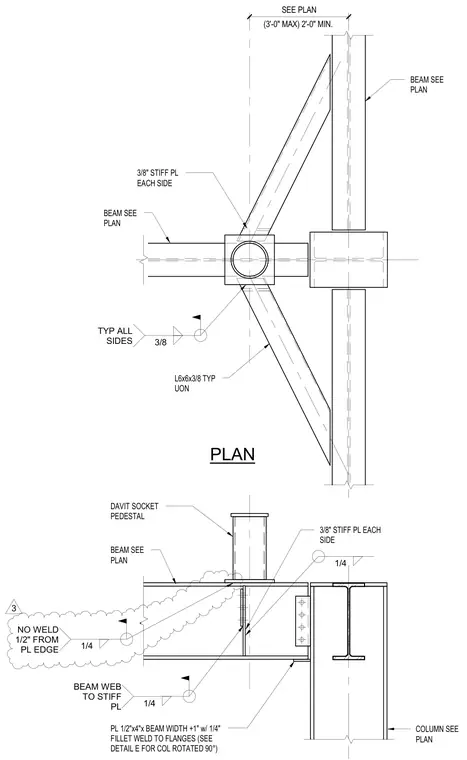

PLAN PL 1/2"x4"x BEAM WIDTH +1" w/ 1/4" FILLET WELD TO FLANGES (SEE DETAIL E FOR COL ROTATED 90°) BEAM SEE PLAN DAVIT SOCKET PEDESTAL 3/8" STIFF PL EACH SIDE COLUMN SEE PLAN L6x6x3/8 TYP UON BEAM SEE PLAN 3/8" STIFF PL EACH SIDE BEAM SEE PLAN 1/4 1/4 BEAM WEB TO STIFF PL (3'-0" MAX) 2'-0" MIN. SEE PLAN 3/8 TYP ALL SIDES 1/4 NO WELD 1/2" FROM PL EDGE 3
