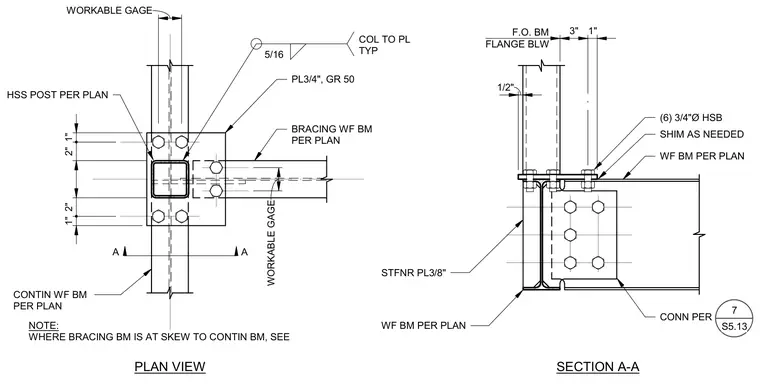

An HSS post connects to a continuous wide flange beam per plan using a three-quarter-inch thick Grade 50 steel plate welded to the column with a five-sixteenth-inch fillet weld. Six three-quarter-inch diameter high-strength bolts secure the assembly, with shims added as needed beneath the base plate. A bracing wide flange beam frames into the connection using a stiffener plate and additional bolted framing. Section A-R indicates the relative positions of the face of the beam flange below and workable gauge dimensions.
STFNR PL3/8" PLAN VIEW SECTION A-A WF BM PER PLAN 1/2" 3" 1" (6) 3/4"Ø HSB CONN PER 2" 1" 2" 1" WF BM PER PLAN WORKABLE GAGE WORKABLE GAGE A A HSS POST PER PLAN BRACING WF BM PER PLAN PL3/4", GR 50 CONTIN WF BM PER PLAN 5/16 COL TO PL TYP SHIM AS NEEDED F.O. BM FLANGE BLW NOTE: WHERE BRACING BM IS AT SKEW TO CONTIN BM, SEE 7 S5.13
